ROUGH BORING CUTTER MODULE

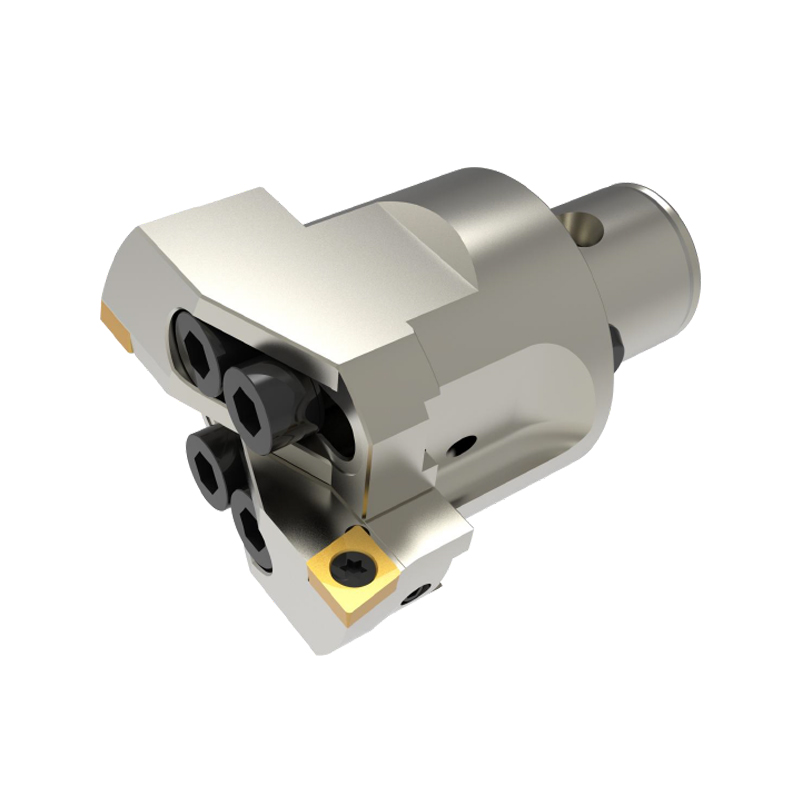

CTD-WRH Rough Boring Tools

ROUGH BORING CUTTER MODULE
  • FEATURE
  • INQUIRY
FEAURES

  • CK CONNCETOR
  • Standard cutter head with internal coolant

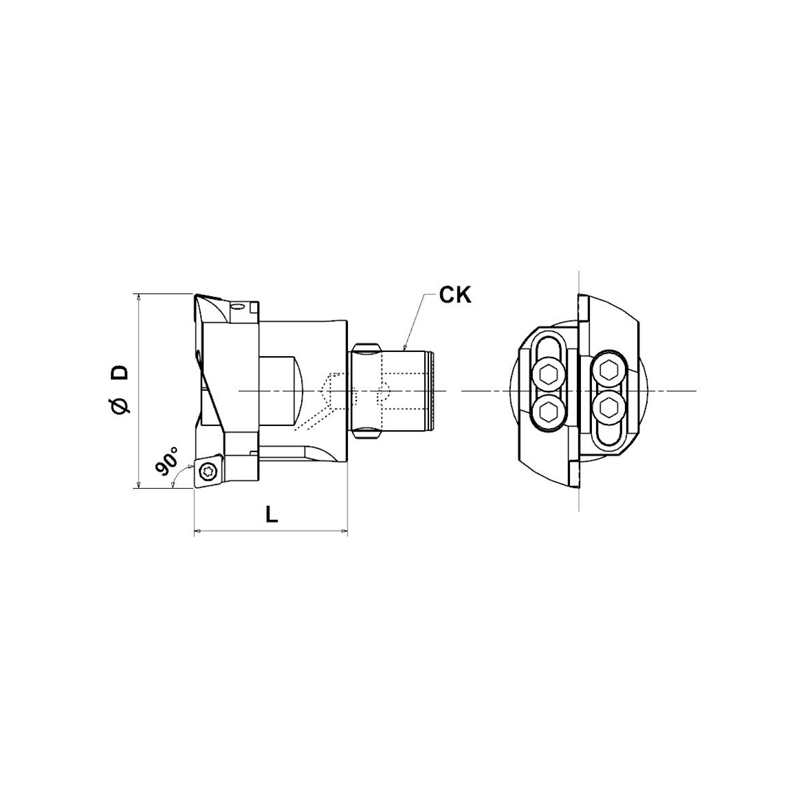

MODEL

BORING 4>D (mm)

Insert holder model

CONNE

CTOR

L

kg

INSERTS

CTD-WRH2026-CKB1

20 〜26

WRH-2026-CC06

CK1

32.5

0. 1

CC …06

CTD-WRH2533-CKB2

25 〜33

WRH-2533-CC06

CK2

35.5

0.2

CTD-WRH3242-CKB3

32 〜42

WRH-3242-CC09

CK3

40

0.3

CC …09

CTD-WRH4154-CKB4

41 〜54

WRH-4154-CC09

CK4

47

0.5

CTD-WRH5370-CKB5

53 〜70

WRH-5370-CC12

CK5

57

0.8

CC …12

CTD-WRH6890-CKB6

68 〜90

WRH-6890-CC12

CK6



71

1.6

CTD-WRH88110-CKB6

88 〜110

WRH-88110-CC12

1.8

CTD-WRH98126-CKB6

98 〜126

WRH-98126-CC12

2.8

CTD-WRH125153-CKB6

125〜153

WRH-125153-CC12

3.0

CTD-WRH98126-CKB7

98 〜126

WRH-98126-CC12

CK7

87

3.8

CTD-WRH125153-CKB7

125〜153

WRH-125153-CC12

4. 1

CTD-WRH148176-CKB6

148〜176

WRH-148176-CC12

CK6

71

3.6

CTD-WRH175203-CKB6

175〜203

WRH-175203-CC12

3.8

CTD-WRH148176-CKB7

148〜176

WRH-148176-CC12

CK7

117

6.4

CTD-WRH175203-CKB7

175〜203

WRH-175203-CC12

6.6


◎Standard cutter head
◎With corresponding blade holder
◎INSERT to be ordered separately

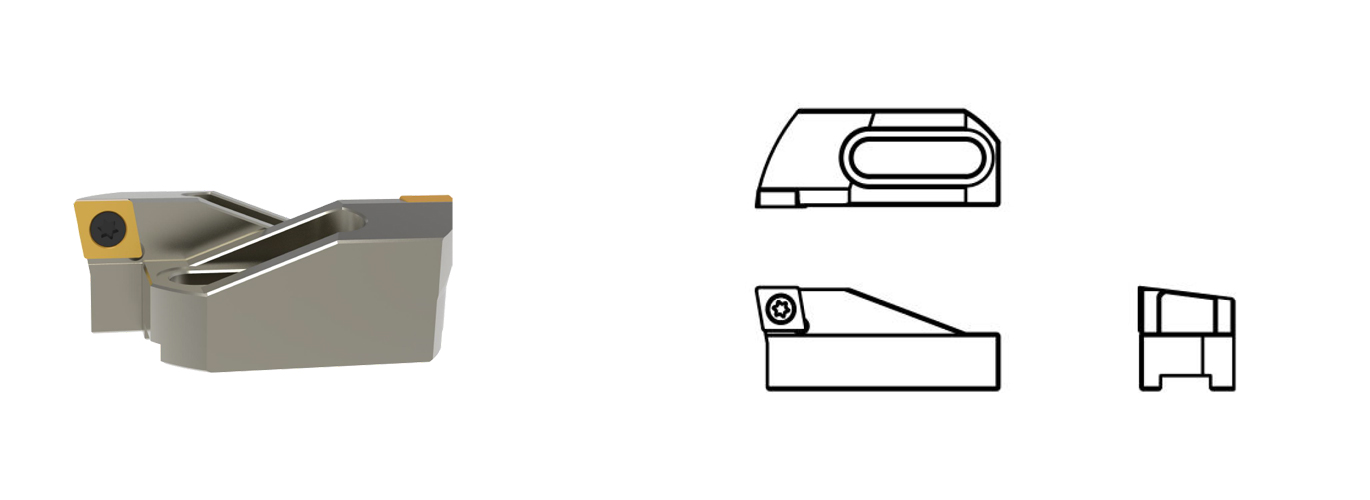

Insert holder model

RANGE

4>D(mm)

Kr

INSERT

INSERT SCREW

WRENCH

WRH-2026-CC06

20 〜26

90°

CC06

CSG2565-P

CTS08W-P

WRH-2533-CC06

25 〜33

WRH-3242-CC09

32 〜42

CC09

CSG4011-P

CTS15W-P

WRH-4154-CC09

41 〜54

WRH-5370-CC12

53 〜70

CC12

CSG5012-P

CTS20W-P

WRH-6890-CC12

68 〜90

WRH-88110-CC12

88 〜110

WRH-98126-CC12

98 〜126

WRH-125153-CC12

125〜153

WRH-148176-CC12

148〜176

WRH-175203-CC12

175〜203

◎INSERT to be ordered separately
