Home / Product / Tooling System / BT-1982 / DIN 69872 SK Tooling System
Rivet

BT-1982 / DIN 69872 SK Tooling System

Rivet
  • FEATURE
  • INQUIRY

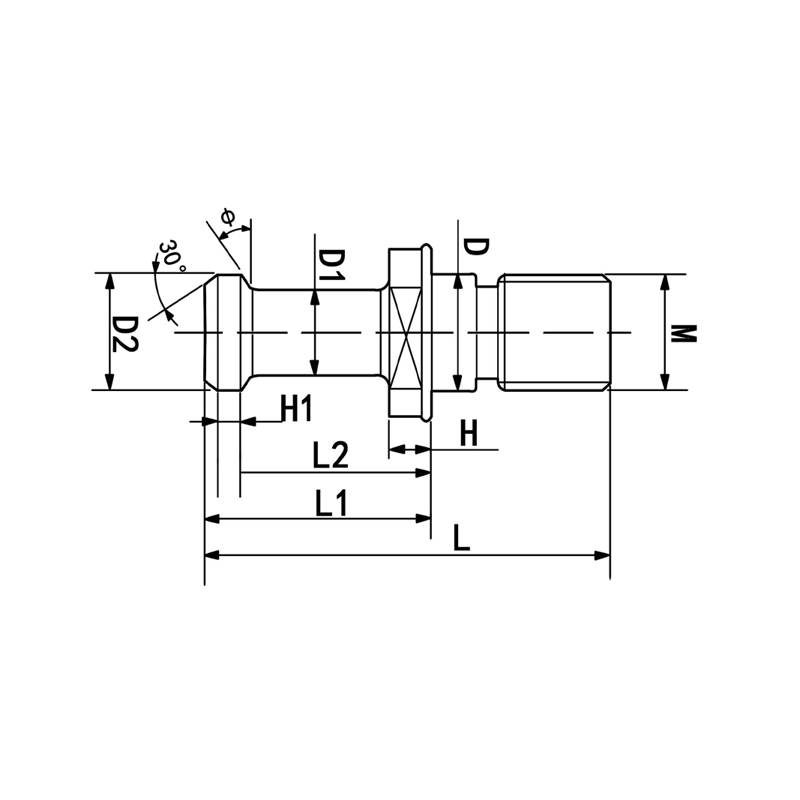

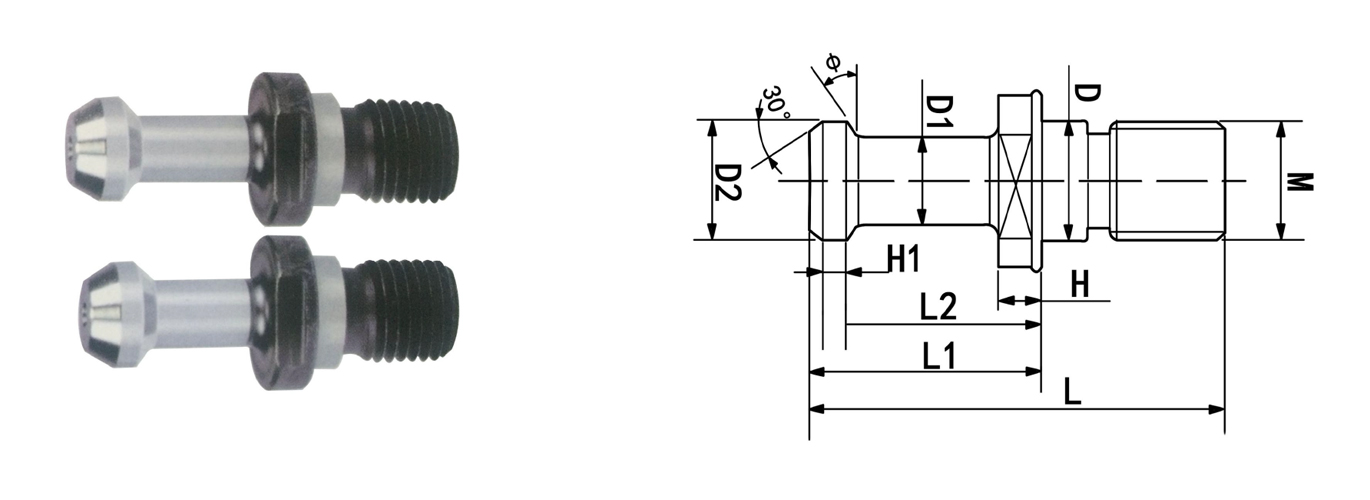

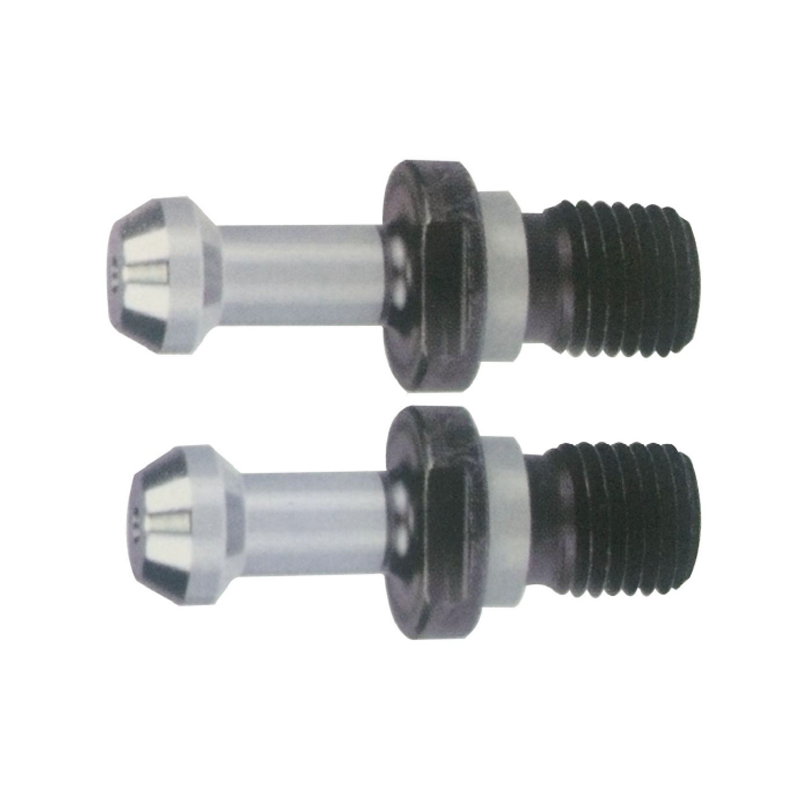

BT-1982 BT Rivet

PRODUCT MODEL

DIMENSIONS

<t>

D

D1

D2

M

L

LI

L2

H

HI

LD-BT30

12.5

7

11

M12

43

23

18

5

2.5

45°

LD-BT40

17

10

15

M16

60

35

28

6

3

60°

LD-BT50

25

17

23

M24

85

45

35

10

5

90°


◎For intercooler Rivet with .C, example:BT50-45°.C

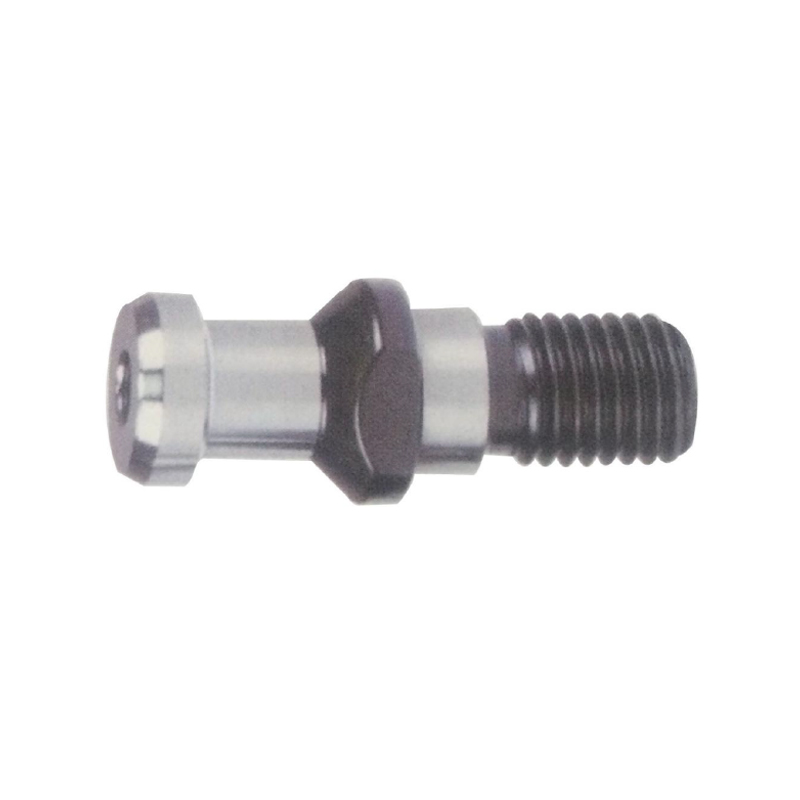

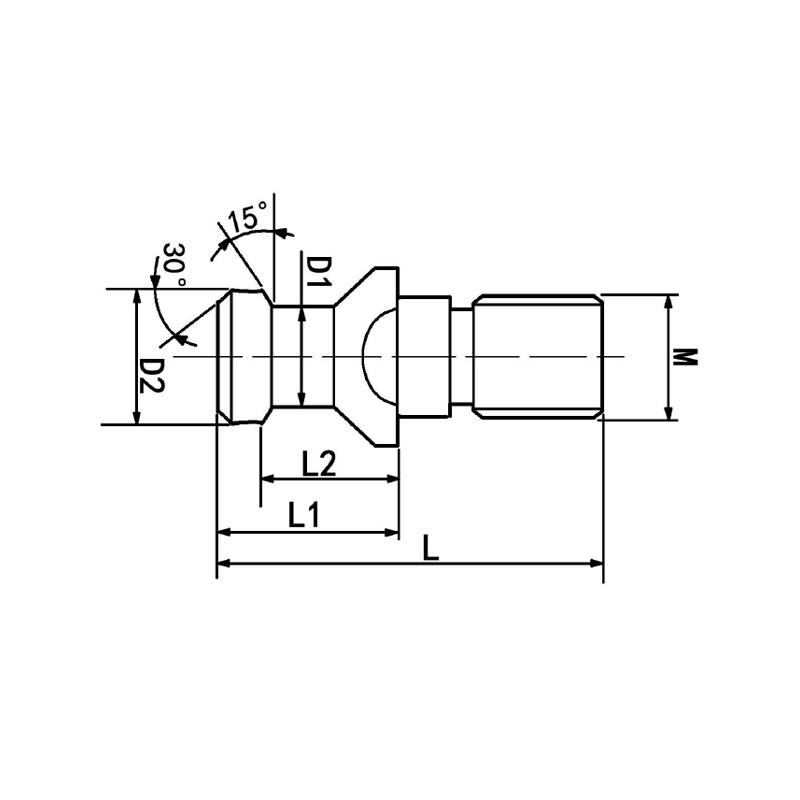

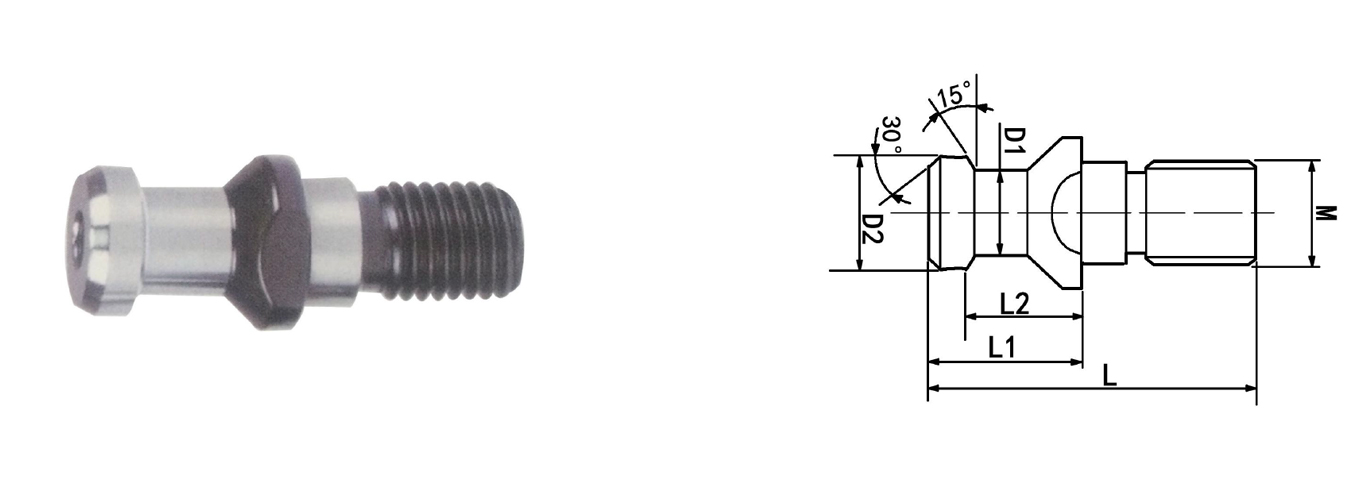

DIN69872 SK Rivet


PRODUCT MODEL

DIMENSIONS

D

D1

D2

M

L

LI

L2

SK-30A

13

9

13

M12

44

24

19

SK-40A

17

14

19

M16

54

26

20

SK-50A

25

21

28

M24

74

34

25

SK-30B

13

9

13

M12

44

24

19

SK-40B

17

14

19

M16

54

26

20

SK-50B

25

21

28

M24

74

34

25


◎For intercooler Rivet with .C, example:SK-50B.C;A MODEL WITH INNER COOL
