Tool system tool holder series: elastic collet tool holder

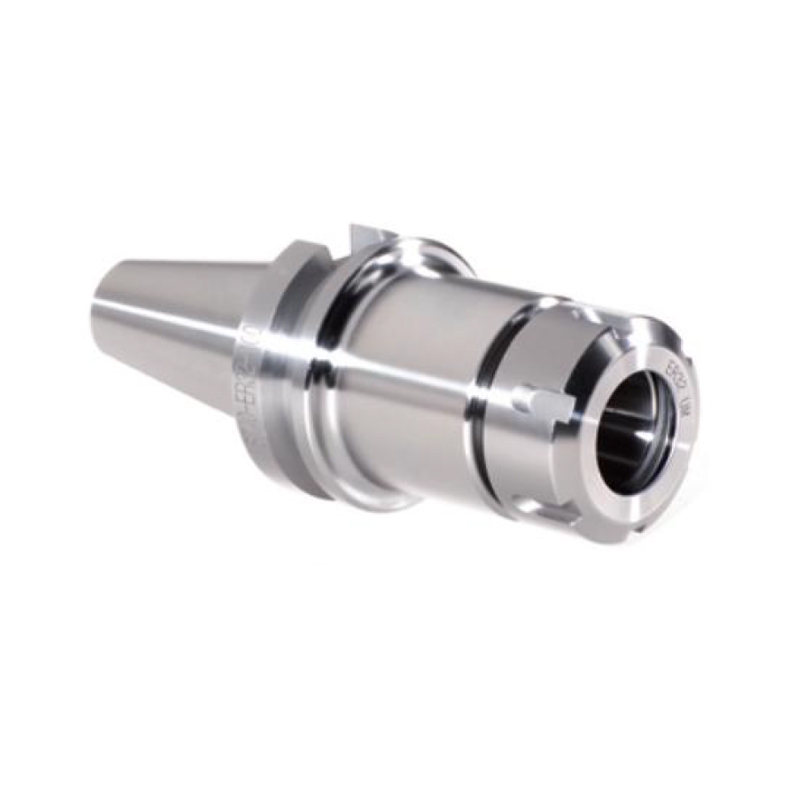

BT-ER Tooling System

Tool system tool holder series: elastic collet tool holder
  • FEATURE
  • INQUIRY

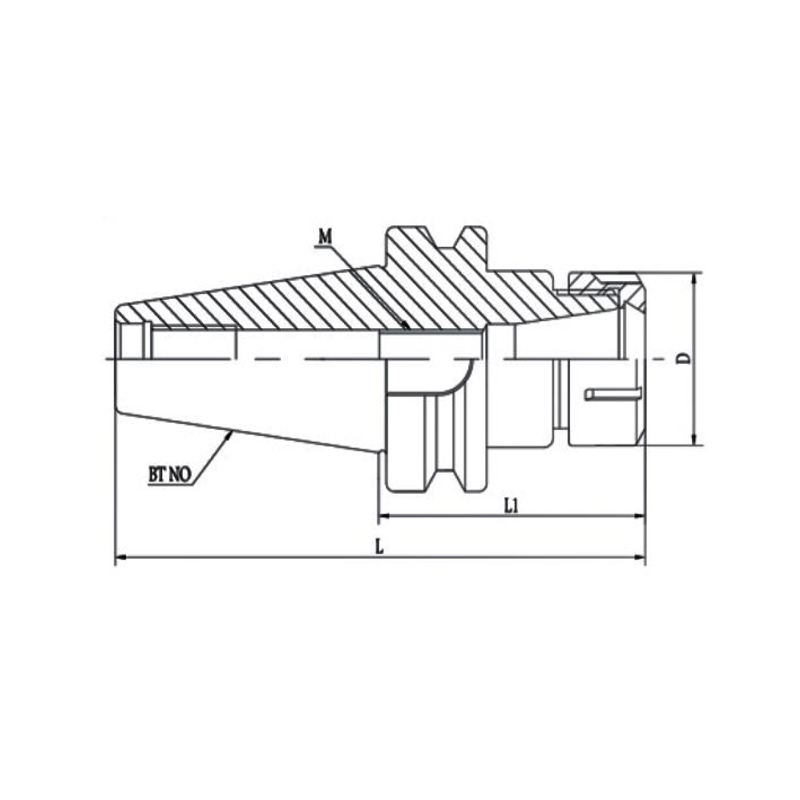

MODEL

DIMENSION

Clasping

range

collet

SCREW

WRENCH

LI

L

D

BT30-ER11-60

60

108.4

19

0. 5-7

ER11

ER11-A

0W/ER11

BT30-ER11-100

100

148.4

BT30-ER16-60

60

108.4

28

1-10

ER16

ER16-A

0W/ER16

BT30-ER16-100

100

148.4

BT30-ER20-60

60

108.4

34

2-13

ER20

ER20-A

0W/ER20

BT30-ER20-100

100

148.4

BT30-ER25-60

60

108.4

42

2-16

ER25

ER25-UM

UW/ER25

BT30-ER25-100

100

148.4

BT30-ER32-60

60

108.4

50

3-20

ER32

ER32-UM

UW/ER32

BT30-ER32-100

100

148.4

BT40-ER11-70

70

135.4

19

0. 5-7

ER11

ER11-A

0W/ER11

BT40-ER11-100

100

165.4

BT40-ER16-70

70

135.4

28

1-10

ER16

ER16-A

0W/ER16

BT40-ER16-100

100

165.4

BT40-ER16-150

150

215.4

BT40-ER20-70

70

135.4

34

2-13

ER20

ER20-A

0W/ER20

BT40-ER20-100

100

165.4

BT40-ER20-150

150

215.4

BT40-ER25-70

70

135.4

42

2-16

ER25

ER25-UM

UW/ER25

BT40-ER25-100

100

165.4

BT40-ER25-150

150

215.4

BT40-ER32-70

70

135.4

50

3-20

ER32

ER32-UM

UW/ER32

BT40-ER32-100

100

165.4

BT40-ER32-150

150

215.4

BT40-ER40-80

80

145.4











BT40-ER40-100

100

165.4

63

3-26

ER40

ER40-UM

UW/ER40

BT40-ER40-150

150

215.4











BT50-ER16-70

70

171.8

28

1-10

ER16

ER16-A

0W/ER16

BT50-ER16-100

100

201.8

BT50-ER16-150

150

251.8

BT50-ER20-70

70

171.8

34

2-13

ER20

ER20-A

0W/ER20

BT50-ER20-100

100

201.8

BT50-ER20-150

150

251.8

BT50-ER25-70

70

171.8

42

2-16

ER25

ER25-UM

UW/ER25

BT50-ER25-100

100

201.8

BT50-ER25-150

150

251.8

BT50-ER32-70

70

171.8

50

3-20

ER32

ER32-UM

UW/ER32

BT50-ER32-100

100

201.8

BT50-ER32-150

150

251.8

BT50-ER40-80

80

181.8

63

3-26

ER40

ER40-UM

UW/ER40

BT50-ER40-100

100

201.8

BT50-ER40-150

150

251.8

BT50-ER40-200

200

301.8
