heat shrink tool holder

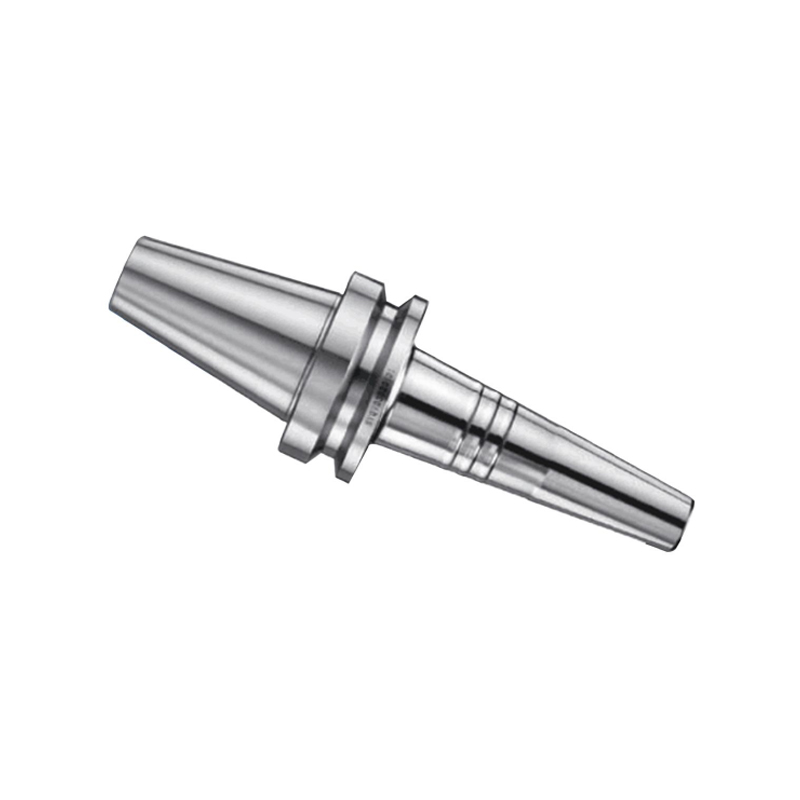

BT-RS Tooling System

heat shrink tool holder
  • FEATURE
  • INQUIRY

MODEL

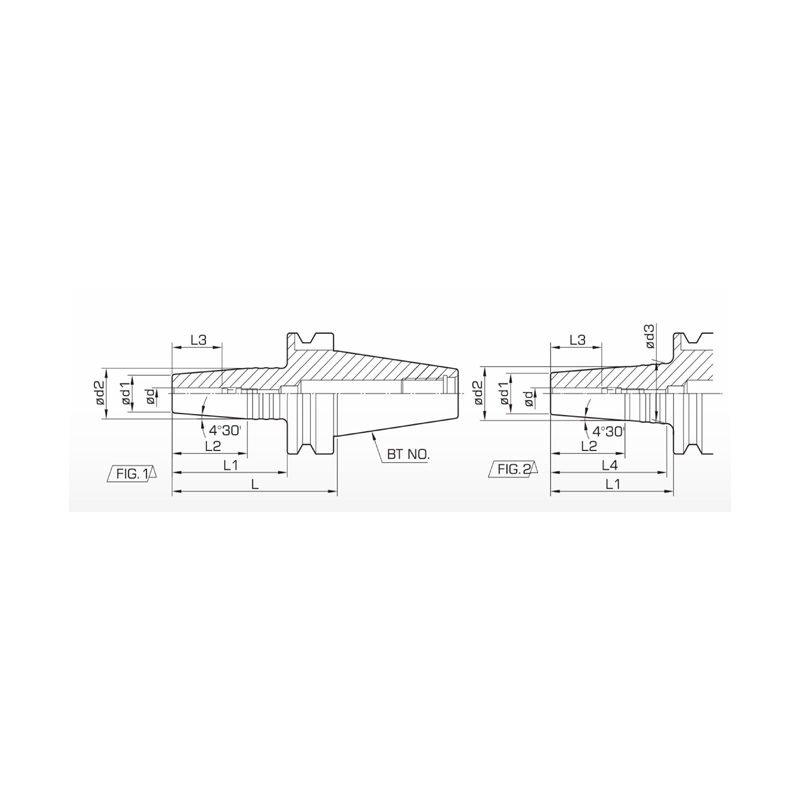

FIG

DIMENSION

Clasping

depth

SCREW

d

dl

d2

d3

L

LI

L2

L4

BT30-RS04-080

1

4

16

23

-

80

58

40.7

-

minl8



BT30-RS06-080

1

6

20

27

80

58

40.7

25. 5-35. 5

HY06

BT30-RS08-080

1

8

20

27

80

58

40.7

25. 5-35. 5

HY08

BT30-RS10-080

1

10

24

32

80

58

50.8

31.5-41.5

HY08

BT30-RS12-080

1

12

24

32

80

58

50.8

36. 5-46. 5

HY14

BT30-RS16-080

1

16

27

34

80

58

40.7

39. 5-49. 5

HY18

BT40-RS04-090

1

4

16

23



90

63

40.7



ninl8

-

BT40-RS04-130

2

27. 1

130

103

44.5

100.2

BT40-RS04-160

2

30.3

160

133

44.5

130.2

BT40-RS06-090

1

6

21

27



90

63

40.7



25. 5-35. 5

HY06

BT40-RS06-130

2

33.3

130

103

44.5

100.2

BT40-RS06-160

2

38. 1

160

133

44.5

130.2

BT40-RS08-090

1

8

21

27



90

63

40.7



HY08

BT40-RS08-130

2

33.3

130

103

44.5

100.2

BT40-RS08-160

2

38.1

160

133

44.5

130.2

BT40-RS10-090

1

10

24

32



90

63

47.0



31.5-41.5

BT40-RS10-130

2

37.5

130

103

50.8

100.2

BT40-RS10-160

2

42.6

160

133

50.8

132.1

BT40-RS12-090

1

12

24

32



90

63





36. 5-46. 5

HY14

BT40-RS12-130

2

10.3

130

103

50.8

100.2

BT40-RS12-160

2

45.3

160

133

50.8

132.1

BT40-RS16-090

1

16

27

34



90

63

40.7



HY18

BT40-RS16-130

2

47

130

103

44.5

100.2

BT40-RS16-160

2

48.6

160

133

44.5

132.1

BT40-RS20-090

1

20

33

42



90

63

57.2



41.5-51.5

HY18

BT40-RS20-130

2

47

130

103

57.2

102. 1

BT40-RS20-160

2

48.6

160

133

57.2

132. 1

BT40-RS25-100

1

25

44

53



100

73

51.5



47. 5-57. 5

HY25

BT40-RS25-130

1



130

103

51.5



BT40-RS25-160

1



160

133

51.5



BT40-RS32-100

1

32



100

73

51.5



50. 5-60. 5

BT40-RS32-130

1



130

103

51.5



BT40-RS32-160

1



160

133

51.5



BT50-RS06-100

1

6

21

27



100

62

34.3



25. 5-35. 5

HY06

BT50-RS06-130

2

30.6

130

92

38.1

82.8

BT50-RS06-160

2

35.3

160

122

38.1

112.8

BT50-RS08-100

1

8

21

27



100

62

34.3



HY08

BT50-RS08-130

2

30.6

130

92

38.1

82.8

BT50-RS08-160

2

35.3

160

122

38.1

112.8

BT50-RS10-100

1

10

24

32



100

62

47.0



31.5-41.5

BT50-RS10-130

2

35.6

130

92

50.8

82.8

BT50-RS10-160

2

39.5

160

122

50.8

112.8

BT50-RS12-100

1

12

24

32



100

62

47.0



36. 5-46. 5

HY14

BT50-RS12-130

2

35.6

130

92

50.8

82.8

BT50-RS12-160

2

39.5

160

122

50.8

112.8

BT50-RS16-100

1

16

27

34



100

62

40.7



39. 5-49. 5

HY18

BT50-RS16-130

2

37.6

130

92

44.5

82.8

BT50-RS16-160

2

42.3

160

122

44.5

112.8

BT50-RS20-100

1

20

33

42



100

62

57.2



41.5-57.5

BT50-RS20-130

2

44.8

130

92

57.2

82.8

BT50-RS20-160

2

47.2

160

122

57.2

112.8

BT50-RS25-100

1

25

44

53



100

62

55.9



47. 5-57. 5

HY25

BT50-RS25-130

1



130

92

52. 1



BT50-RS25-160

2

58.7

160

122

55.9

117.4

BT50-RS32-100

1

32



100

62

55.9



50. 5-60. 5

BT50-RS32-130

1



130

92

52. 1



BT50-RS32-160

2

58.7

160

122

55.9

117.4
