hydraulic tool holder

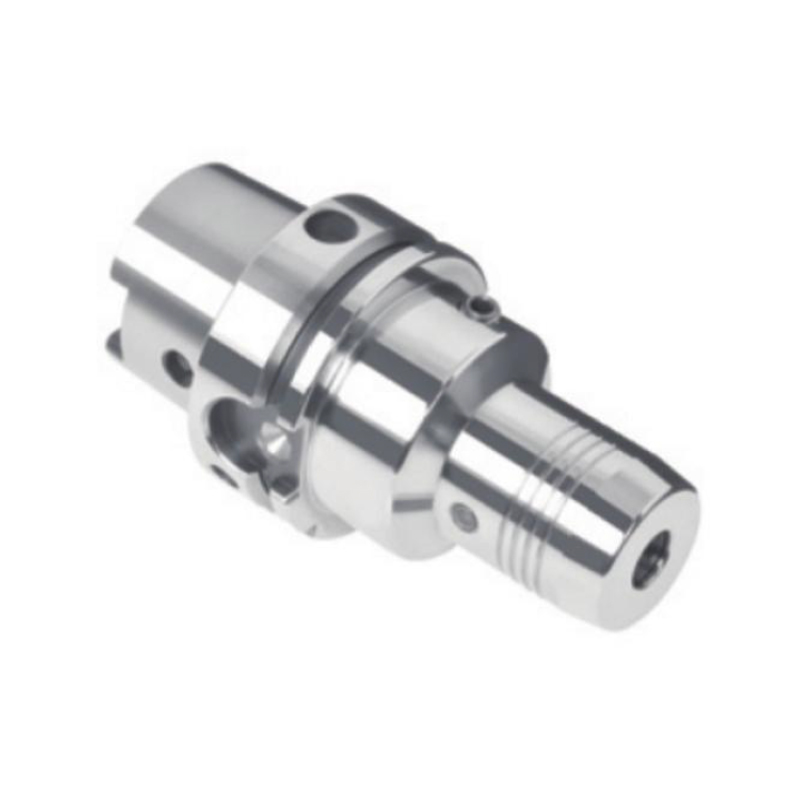

HSK-CY Tooling System

hydraulic tool holder
  • FEATURE
  • INQUIRY

MODEL

DIMENSION

TYPE

D1

D2

D3

D4

LI

L2max

L2min

V

L3

L4

G

HSK40A-CY06-70

6

25

28

34

70

37.5

27.5

10

28

50

M5X0. 8

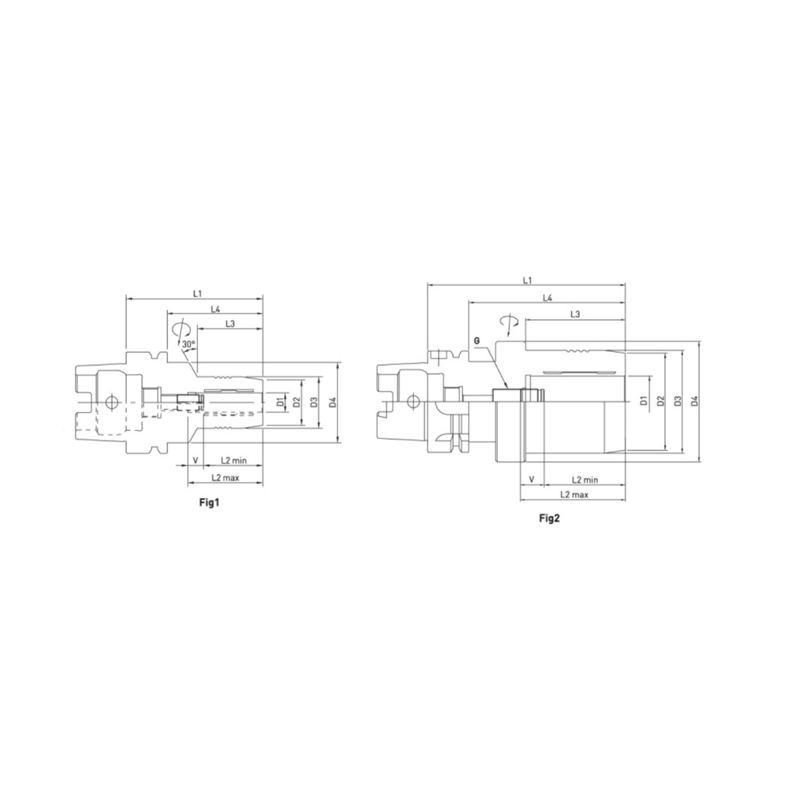

Figl

HSK40A-CY08-70

8

27

30

HSK40A-CY10-75

10

29

32

75

42.5

32.5

34

55

HSK40A-CY12-85

12

31

34

85

47.5

37.5



65

M6X1.0

HSK50A-CY06-70

6

25

28

40

70

37.5

27.5

10

28

44

M5X0. 8

Figl

HSK50A-CY08-70

8

27

30

M6X1.0

HSK50A-CY10-80

10

29

32

80

42.5

32.5

34

54

HSK50A-CY12-85

12

31

34

85

47.5

37.5

44

59

HSK50A-CY14-85

14

33

36

HSK50A-CY16-90

16

35

38

60

90

52.5

42.5



30

64

Fig2

HSK50A-CY18-90

18

38

41







Figl

HSK50A-CY20-90

20

40

42







HSK63A-CY06-70

6

25

28



70

37.5

27.5



24

44

M5X0. 8



HSK63A-CY08-70

8

27

30

M6X1.0

HSK63A-CY10-80

10

29

32

80

42.5

32.5

35

54



HSK63A-CY12-85

12

31

34



47.5

37.5





HSK63A-CY14-85

14

33

36

HSK63A-CY16-90

16

35

38







46





HSK63A-CY18-90

18

38

41

47

64

HSK63A-CY20-90

20

40

43

48



HSK63A-CY25-120

25

53

57

63

120

61

51

59

94

M16

Fig2

HSK63A-CY32-125

32

58

63

75

125

65

55

63

99

XI.0

HSK100A-CY06-75

6

25

28

54

75

37.5

27.5

10

26

46

M5X0. 8

Figl

HSK100A-CY08-75

8

27

30

M6X1.0

HSK100A-CY10-90

10

29

32

50

90

42.5

32.5

42

61

HSK100A-CY12-95

12

31

34

95

47.5

37.5

47

66

HSK100A-CY14-95

14

33

36

HSK100A-CY16-100

16

35

38

100

52.5

42.5

53

71

M8X1.0

HSK100A-CY18-100

18

38

41

HSK100A-CY20-105

20

40

43

105

59

76

HSK100A-CY25-110

25

53

57

63



61

51

62

81

M8X1.0

HSK100A-CY32-110

32

58

63

75

110

65

55

M8X1.0
