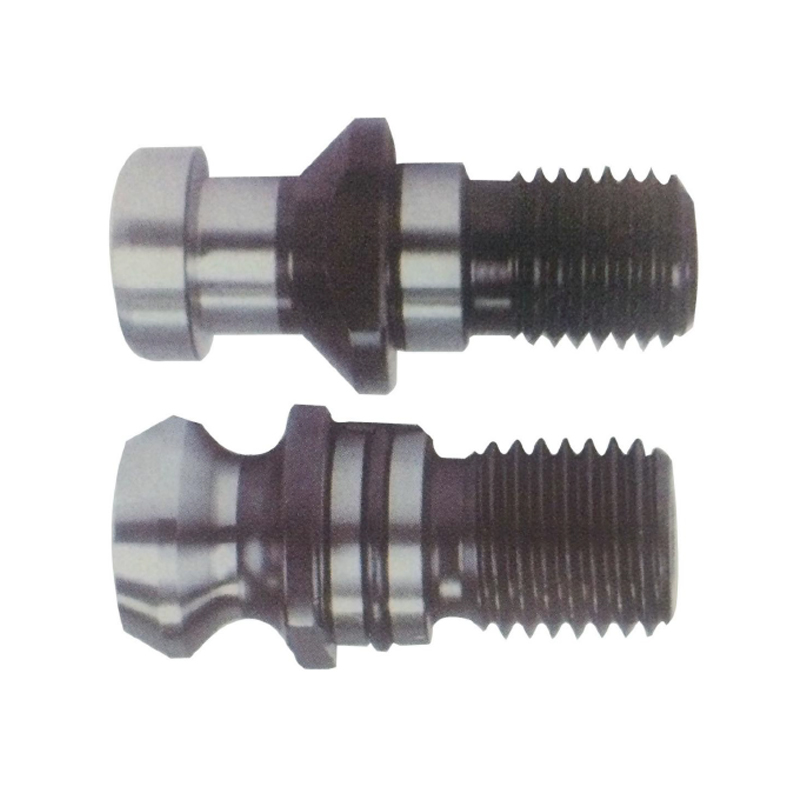

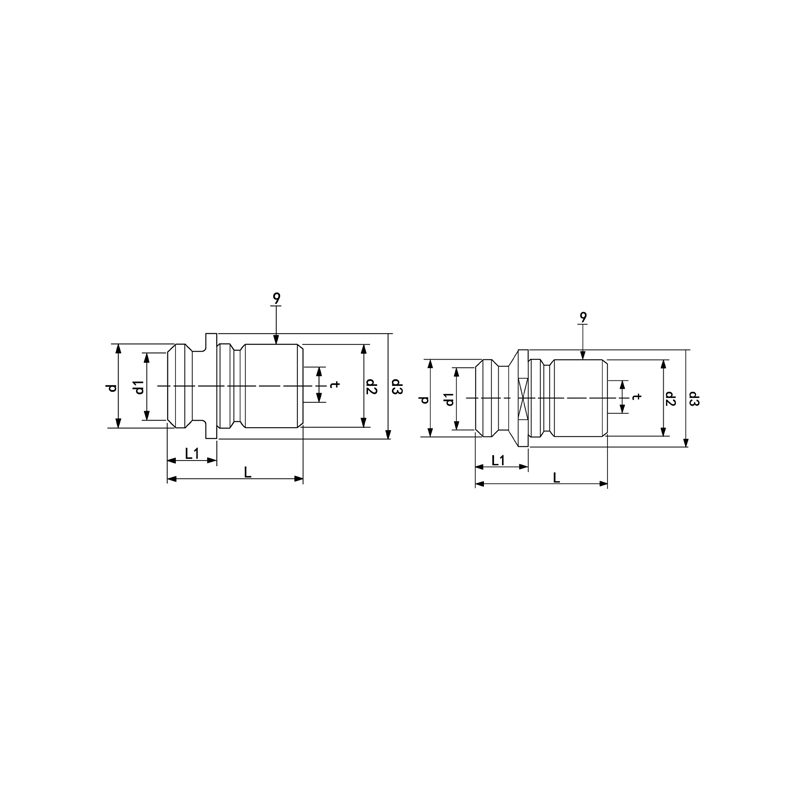

ISO7388 Rivet

PRODUCT MODEL

DIMENSIONS

dl

d2

d3

d

g

I

t

DIN7388-40A

14

17

23

19

M16

54

7.5

DIN7388-50A

21

25

36

28

M24

74

11.5

DIN7388-40B

12.95

17

22.5

18.95

M16

44.5

7.5

DIN7388-50B

19.6

25

36

29. 1

M24

65.5

11.5


◎IF YOU NEED INNER COOL Rivet,WITH.C,EXAMPLE :DIN7388-50B.C

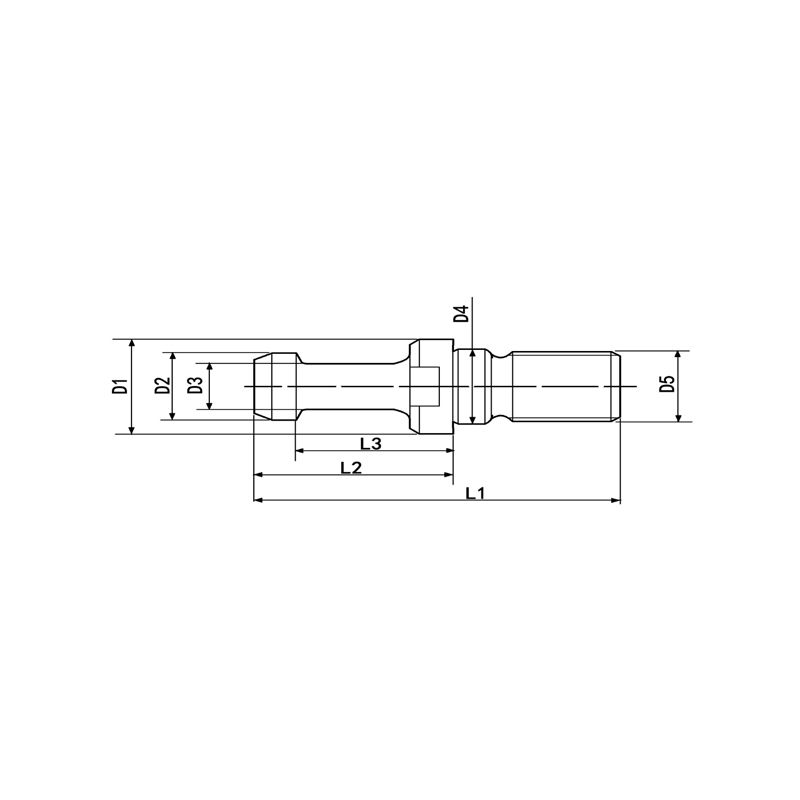

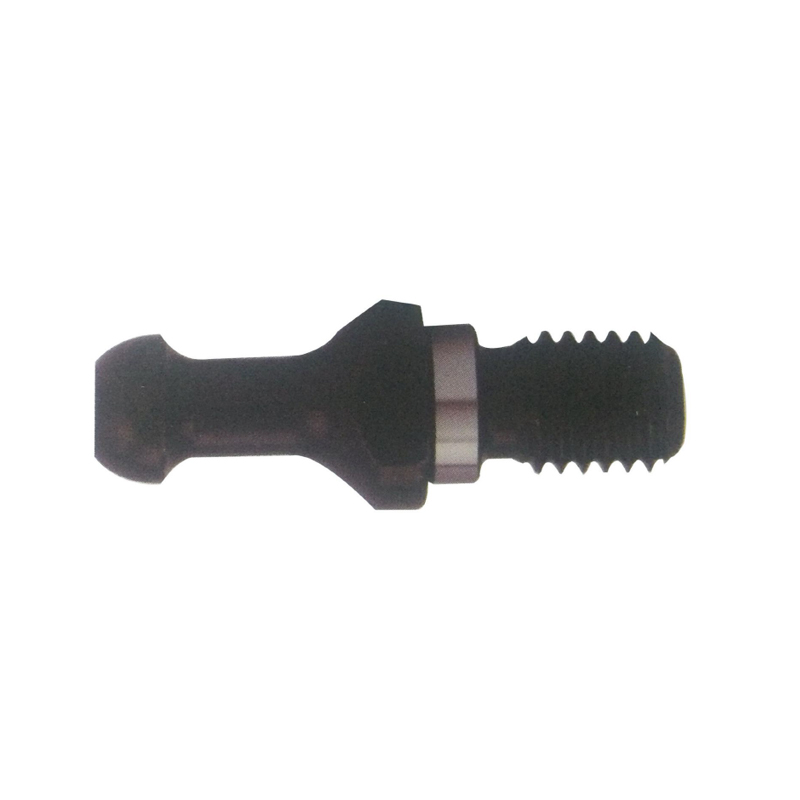

ISO Rivet

PRODUCT MODEL

DIMENSIONS

LI

L2

L3

D1

D2

D3

D4

D5

IS020

26

12

9

12

9

6

8.5

M8

IS025

28

12

9

13

11

7

8.5

M8

IS030

44

24

19

17

13

9

13.0

M12

◎For intercooler Rivet with .C, example:ISO20.C
