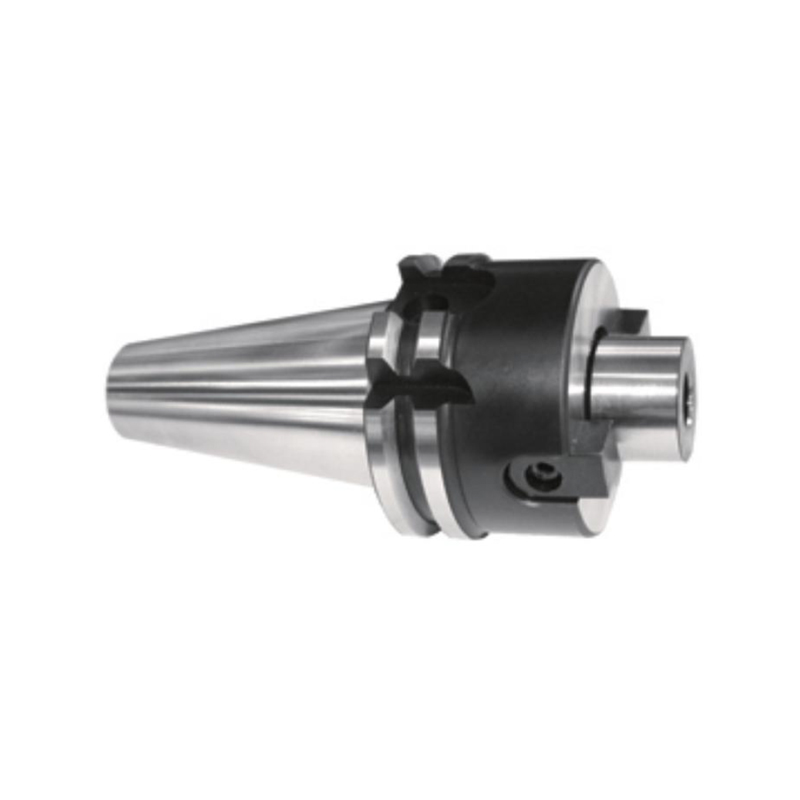

face mill cutter holder

SK-FMB Tooling System

face mill cutter holder

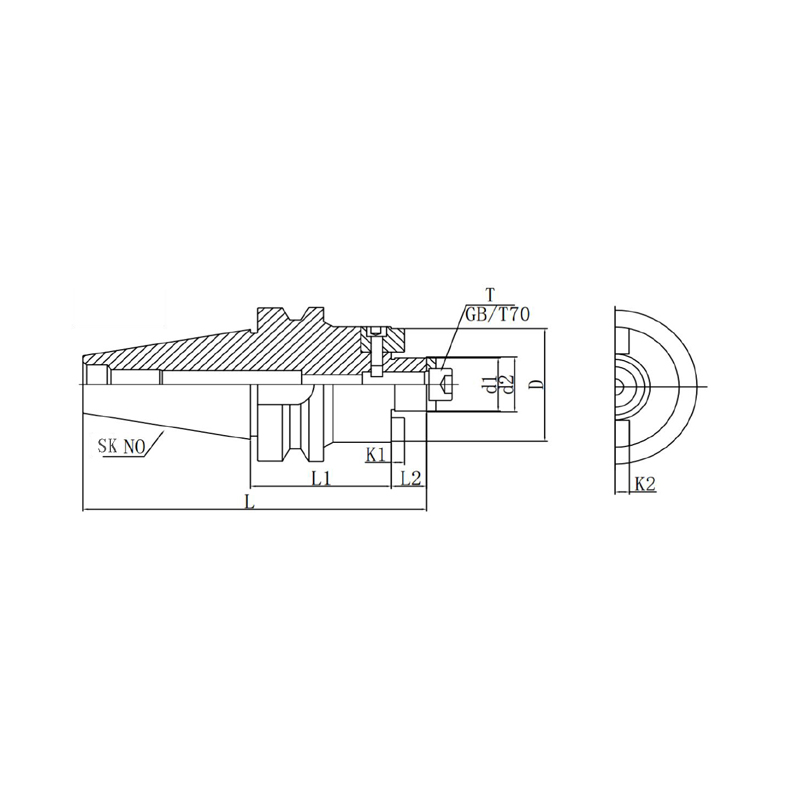

MODEL

DIMENSION

T

LI

L

L2

dl

d2

D

K1

K2

SK30-FMB22-45

45

109.3

16.5

22

26

45

4.8

10

M10x30

SK30-FMB22-60

60

124.3

SK30-FMB27-45

45

111.3

18.5

27

33

54

5.8

12

M12x30

SK30-FMB27-60

60

126.3

SK30-FMB32-60

60

130.3

22

32

41

58

6.8

14

M16x35

SK40-FMB22-45

45

129.9



16.5



22





26





48





4.8





10





M10x30



SK40-FMB22-60

60

144.9

SK40-FMB22-100

100

184.9

SK40-FMB22150

150

234.9

SK40-FMB27-45

45

131.9





18.5





27





33









60









5.8









12









M12x30





SK40-FMB27-60

60

146.9

SK40-FMB27-100

100

186.9

SK40-FMB27-150

150

236.9

SK40-FMB27-200

200

286.9

SK40-FMB32-60

60

150.4





 20



 32





 41





 62





6.8







 14





M16x35



SK40-FMB32-100

100

190.4

SK40-FMB32-150

150

240.4

SK40-FMB32-200

200

290.4

SK40-FMB40-60

60

153.4







 23







 40







48







80









 16





M16x35



SK40-FMB40-100

100

193.4

SK40-FMB40-150

150

243.4

SK40-FMB40-200

200

293.4

SK50-FMB22-60

60

178. 25



22



26



48



16.5



4.8



10





M10x30

SK50-FMB22100

100

218. 25

SK50-FMB22-150

150

268. 25

SK50-FMB22-200

200

318. 25

SK50-FMB27-60

60

180. 25



27



33



60



18.5



5.8



12



M12x30

SK50-FMB27-100

100

220. 25

SK50-FMB27-150

150

270. 25

SK50-FMB27-200

200

320.25

SK50-FMB32-60

60

183. 75



32



41



73



20



6.8



14



M16x35

SK50-FMB32100

100

223. 75

SK50-FMB32-150

150

273. 75

SK50-FMB32-200

200

333. 75

SK50-FMB40-60

60

186. 75



40



48



80





23





8



16





M16x35

SK50-FMB40-100

100

226. 75

SK50-FMB40-150

150

276. 75

SK50-FMB40-200

200

326. 75
