Side mount handle holder

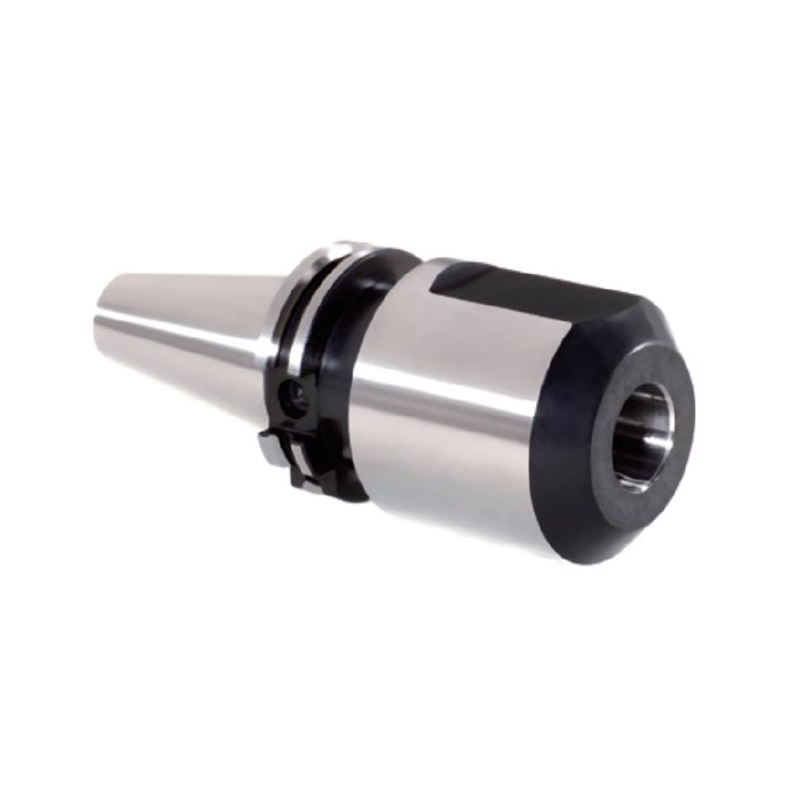

SK-SLN Tooling System

Side mount handle holder
  • FEATURE
  • INQUIRY

MODEL

DIMENSION

type

D

M

d

L

LI

HI

H2

SK30-SLN06-50

25

M6

6

97.8

50

18

Fig. 1

SK30-SLN08-50

28

M8

8

18

Fig. 1

SK30-SLN10-50

35

M10

10

20

Fig. 1

SK30-SLN12-50

42

M12

12

22.5

Fig. 1

SK30-SLN16-63

48

M12

16

110.8

63

24

Fig. 1

SK30-SLN20-63

52

M16

20

25

Fig. 1







SK40-SLN06-50

25

M6

6

118.4

50

18

Fig. 1

SK40-SLN08-50

28

M8

8

18

Fig. 1

SK40-SLN10-50

35

M10

10

20

Fig. 1

SK40-SLN12-50

42

M12

12

22.5

Fig. 1

SK40-SLN16-63

48

M12

16

131.4

63

24

Fig. 1

SK40-SLN20-63

52

M16

20

25

Fig. 1

SK40-SLN25-100

65

M16

25

168.4

100

24

25

Fig. 2

SK40-SLN32-100

72

M20

32

24

28

Fig. 2

SK50-SLN06-63

25

M6

6

164. 75

63

18

Fig. 1

SK50-SLN08-63

28

M8

8

18

Fig. 1

SK50-SLN10-63

35

M10

10

20

Fig. 1

SK50-SLN12-63

42

M12

12

22.5

Fig. 1

SK50-SLN16-63

48

M12

16

24

Fig. 1

SK50-SLN20-63

52

M16

20

25

Fig. 1

SK50-SLN25-80

65

M16

25

181.75

80

24

25

Fig. 2

SK50-SLN32-100

72

M20

32

201.75

100

24

28

Fig. 2

SK50-SLN40-100

90

M20

40

30

32

Fig. 2

SK50-SLN42-100

100

M20

42

30

32

Fig. 2
