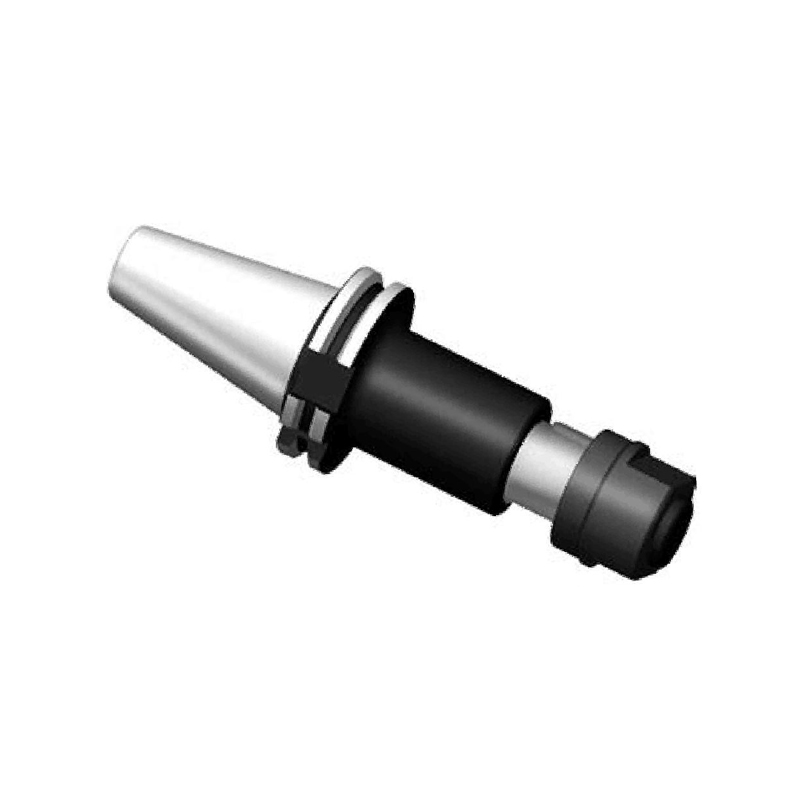

Side milling three-sided blade HOLDER

SK-XS Tooling System

Side milling three-sided blade HOLDER
  • FEATURE
  • INQUIRY

MODEL

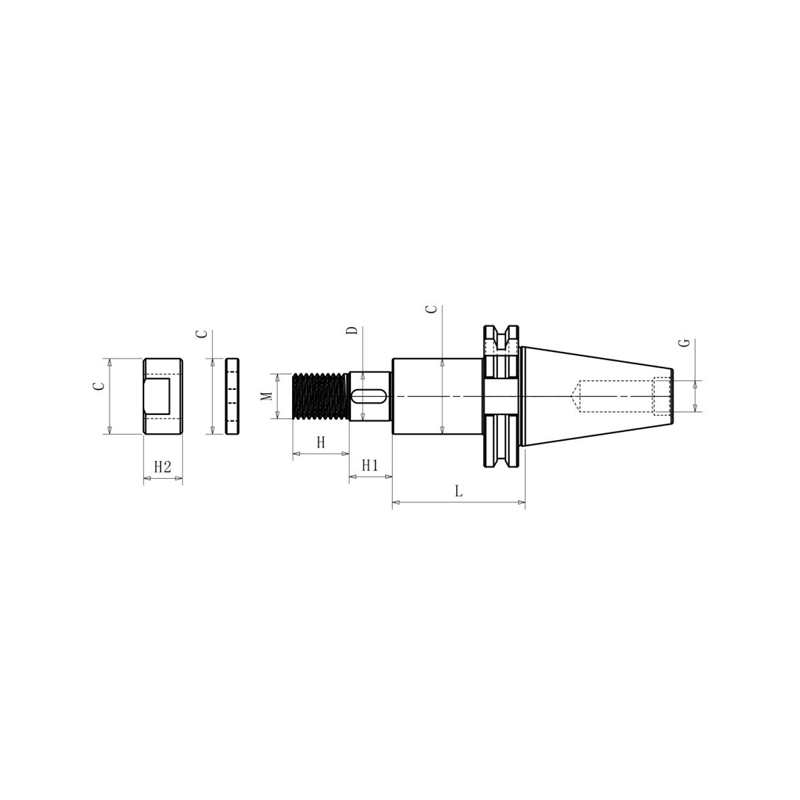

DIMENSION

M

G

kg

D

L

H

C

HI

H2

SK30-XS13-75

13

75

15

20

30

12

M12X1.75

M12

0.6

SK30-XS16-75

16

75

16

26

30

13

M14X1.5

M12

0.7

SK30-XS22-75

22

75

21

34

30

18

M20X1.5

M12

0.8

SK40-XS13-75

13

75

15

20

30

12

M12X1.75

M16

1.3

SK40-XS13-105

13

105

15

20

30

12

M12X1.75

M16

1.4

SK40-XS16-75

16

75

16

26

30

13

M14X1.5

M16

1.4

SK40-XS16-105

16

105

16

26

30

13

M14X1.5

M16

1.5

SK40-XS22-75

22

75

21

34

30

18

M20X1.5

M16

1.6

SK40-XS22-105

22

105

21

34

30

18

M20X1.5

M16

1.9

SK40-XS27-75

27

75

25

40

30

21

M24X2.0

M16

2. 1

SK40-XS27-120

27

120

25

40

30

21

M24X2.0

M16

2.5

SK40-XS32-90

32

90

30

46

30

26

M30X2.0

M16

2.6

SK50-XS13-75

13

75

15

20

30

12

M12X1.75

M24

3.7

SK50-XS13-105

13

105

15

20

30

12

M12X1.75

M24

3.8

SK50-XS16-90

16

90

16

26

30

13

M14X1.5

M24

4.0

SK50-XS16-120

16

120

16

26

30

13

M14X1.5

M24

4. 1

SK50-XS22-90

22

90

21

34

30

18

M20X1.5

M24

4.3

SK50-XS22-135

22

135

21

34

30

18

M20X1.5

M24

4.6

SK50-XS27-90

27

90

25

40

30

21

M24X2.0

M24

4.7

SK50-XS27-135

27

135

25

40

30

21

M24X2.0

M24

5. 1

SK50-XS32-90

32

90

30

46

30

26

M30X2.0

M24

5. 1

SK50-XS32-135

32

135

30

46

30

26

M30X2.0

M24

5.7

SK50-XS40-90

40

90

36

55

30

31

M36X2.0

M24

5.8

SK50-XS40-135

40

135

36

55

30

31

M36X2.0

M24

6.8

SK50-XS50-150

50

150

40

70

40

36

M48X2.0

M24

8.5


ACCESSORY

MODEL

FLAT KEY

LOCK SCREW

spacer

XS13



LM M12X1.75

FJ XS13X 5/10/20

XS16

PL08 4X4X25

LM M14X1.5

FJ XS16X 5/10/20

XS22

PL08 6X6X25

LM M20X1.5

FJ XS22X5/10/20

XS27

PL08 7X7X25

LM M24X2.0

FJ XS27X5/10/20

XS32

PL08 8X7X25

LM M30X2.0

FJ XS32X 5/10/20

XS40

PL08 10X8X25

LM M36X2.0

FJ XS40X 5/10/20

XS50

PL08 12X8X25

LM M48X2.0

FJ XS50X 5/10/20
