Negative 80° diamond insert

CNMG Inserts Series

Negative 80° diamond insert
  • FEATURE
  • INQUIRY

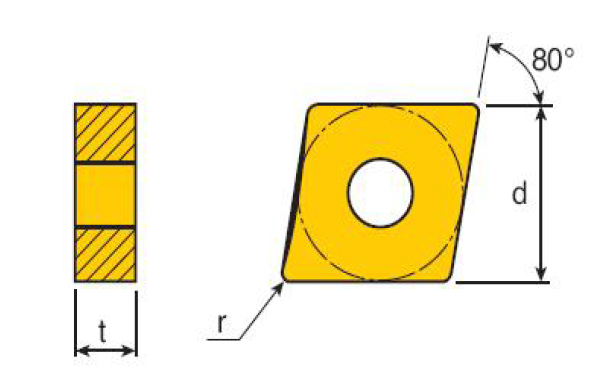

cutting edge length

dimension

d

t

r

09

9. 52

4. 76

0. 8-1.2

12

12.7

4. 76

0. 1-1.6

16

15. 88

6. 35

1.2-1. 6

19

19. 05

6. 35

0. 4-1.6

25

25.4

9. 52

2.4


insert

model

feed

(mm/rev)

cut depth (mm)

P

M/S

K

N

CT5215

CT5225

CT5415

CT5425

CT8215

CT8225

CT7415

CT7425

CT101







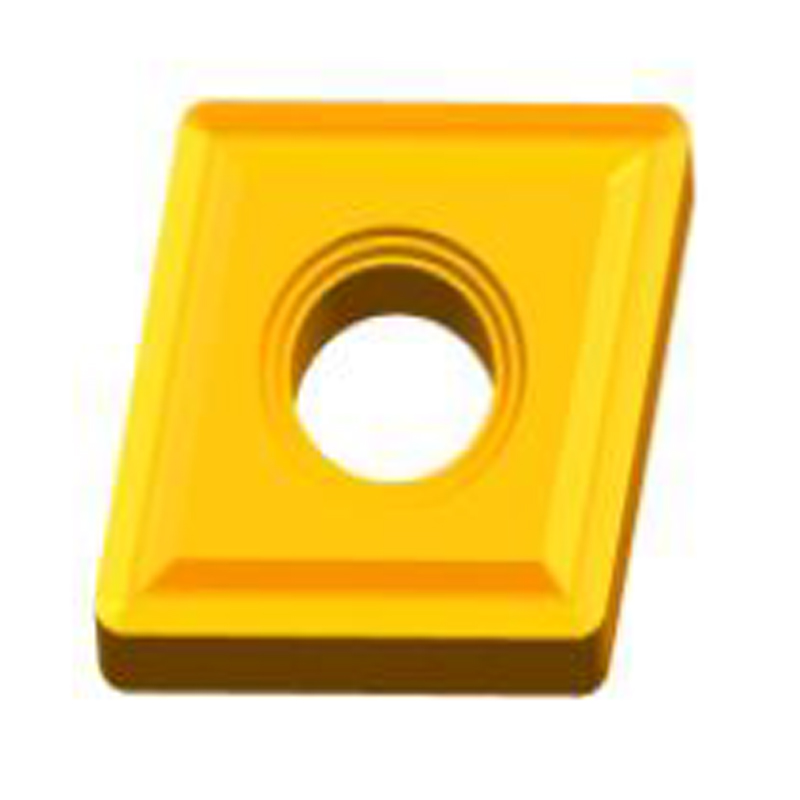

fine finishing

CNMG

120404 SF

0.05-0. 30

0.2-2. 5

















120408 SF

0.08-0. 35

0. 3-2. 5































































































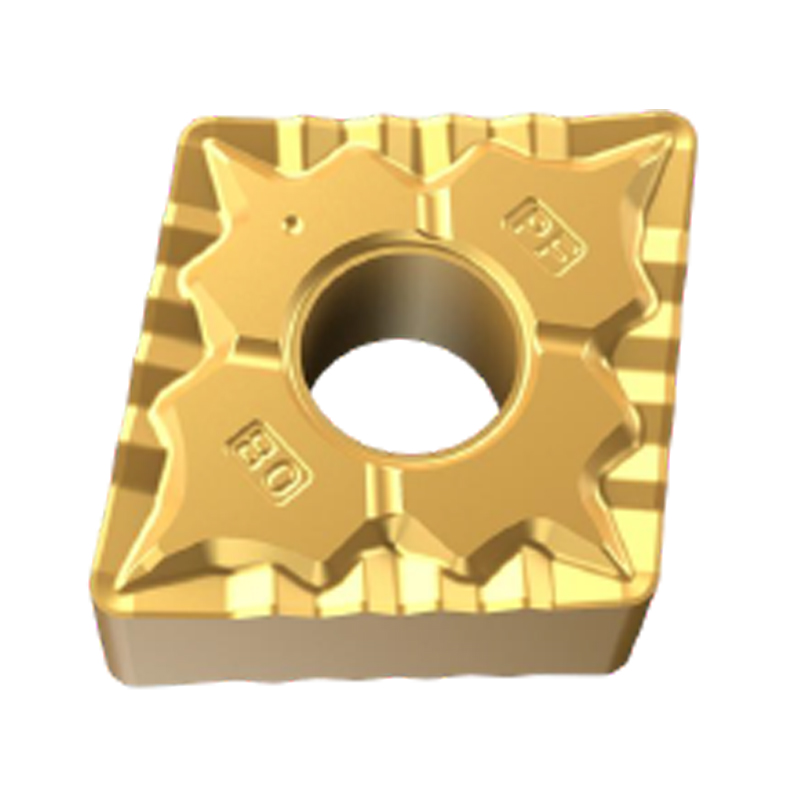

fine finishing

CNMG

120404 PF

0.10-0.40

0. 5-4.0

O













120408 PF

0. 10-0.40

0. 5-4. 0

O



























































































fine finishing

CNMG

120404 MS

0. 10-0.40

0. 5-4. 0















120408 MS

0. 10-0.40

0. 5-4. 0





























































































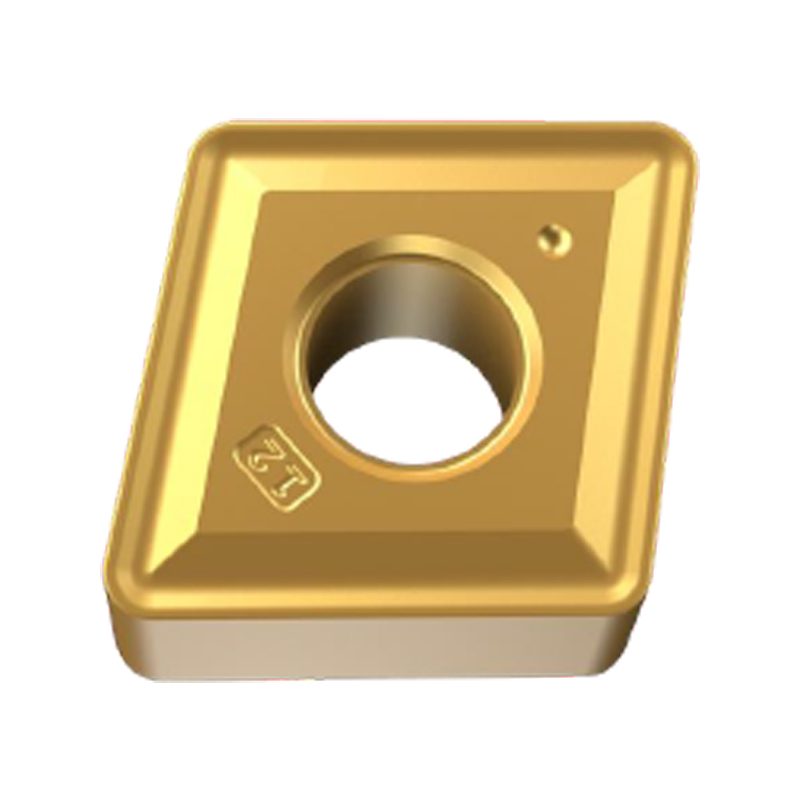

medium finishing

CNMG

120404 TM

0. 17-0. 55

1.2-5.0

o













120408 TM

0. 17-0. 55

1.2-5.0

o













120412 TM

0. 20-0. 55

1. 5-5. 0

o































































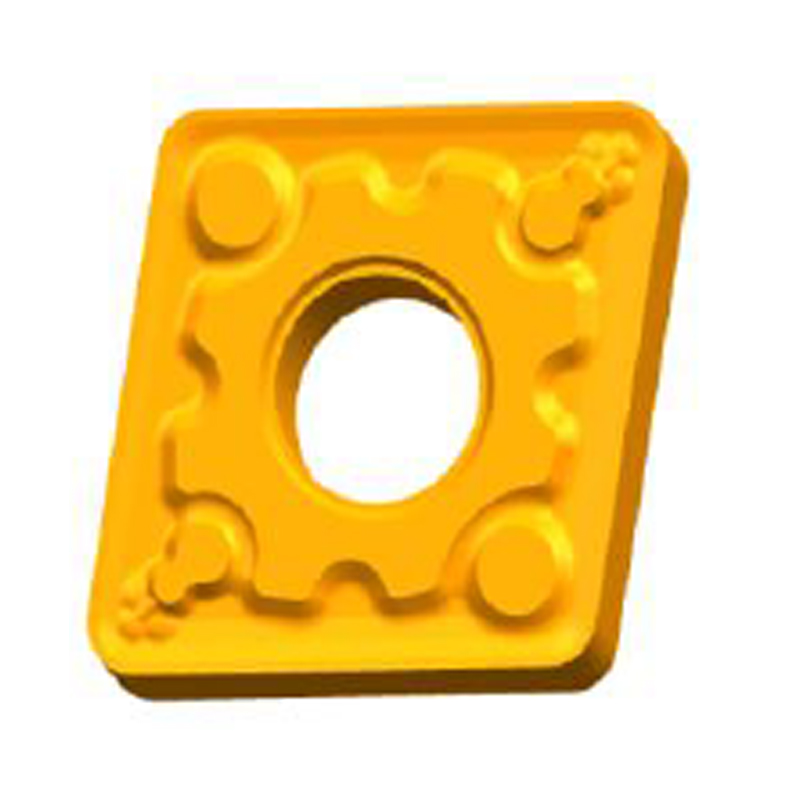

medium finishing

CNMG

120408 PZ

0. 17-0. 55

1.2-5.0

o













120412 PZ

0. 20-0. 55

1. 5-5. 0

o




















































































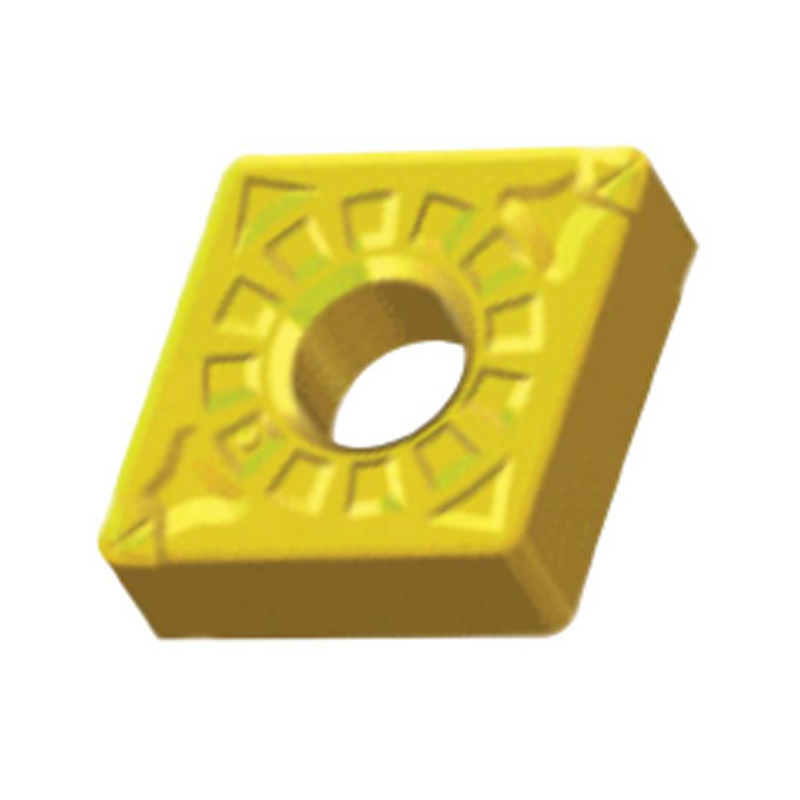

medium finishing

CNMG

120404 MA

0.10-0.50

0.5-5.0

120408 MA

0.13-0.50

0.5-5.0

120412 MA

0.15-0.55

0.5-5.0


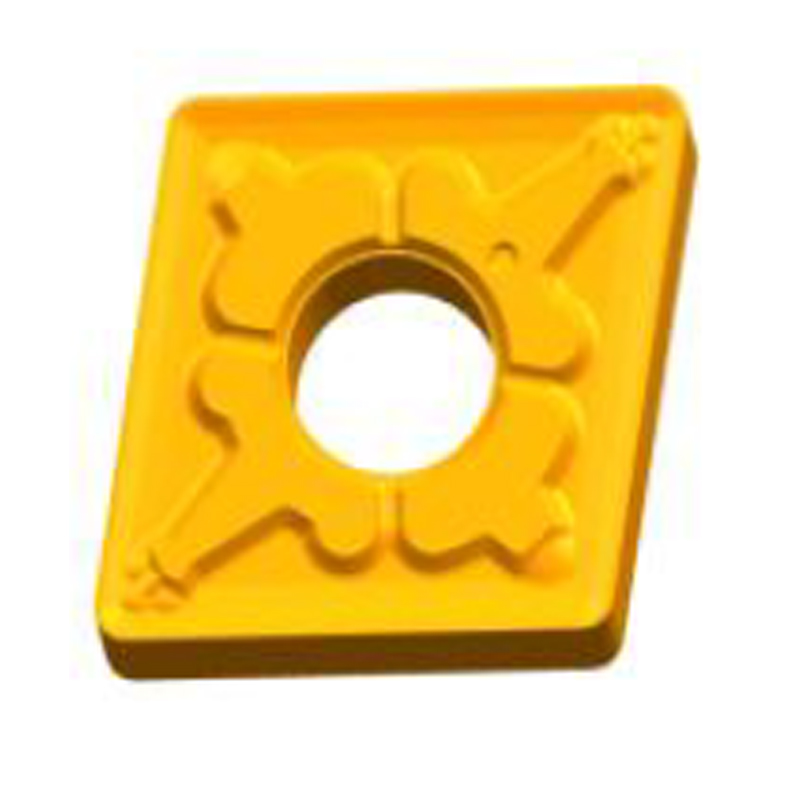

medium finishing

CNMG

120408

0.23-0.60

1.2-5.0

o

120412

0.25-0.60

2.0-5.0

o

120416

0.27-0.60

2.5-5.0

o

160608

0.25-0.60

2.0-6.5

o

160612

0.27-0.60

2.0-6.5

o

160616

0.29-0.60

2.0-6.5

o

190612

0.30-0.60

3.0-8.0

o

190616

0.35-0.70

3.0-8.0

o
