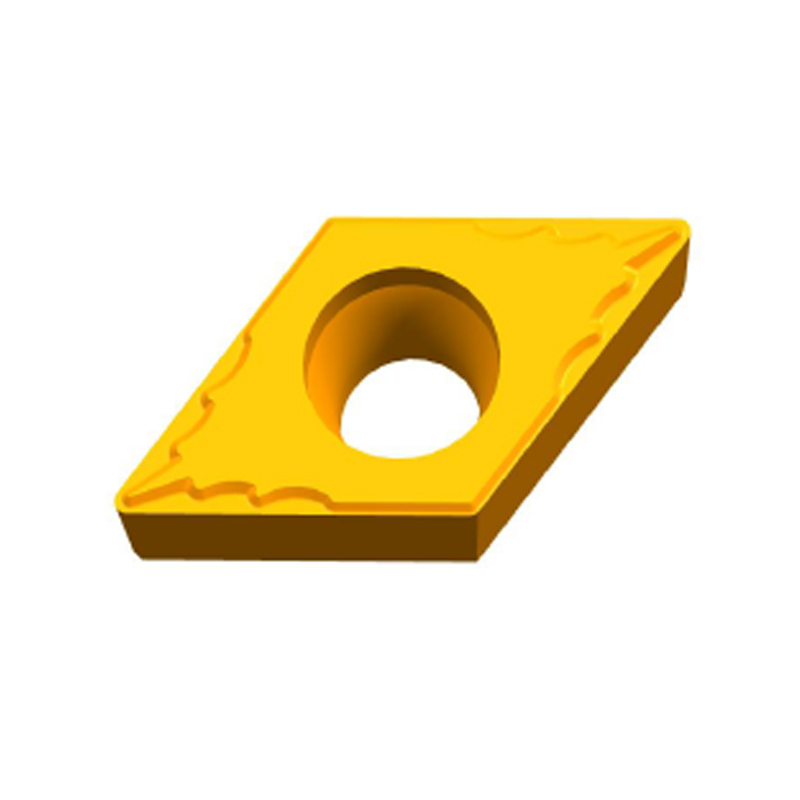

POSITIVE7°REAR ANGLE 55°RHOMBIC insert

DCMT Inserts Series

POSITIVE7°REAR ANGLE 55°RHOMBIC insert
  • FEATURE
  • INQUIRY

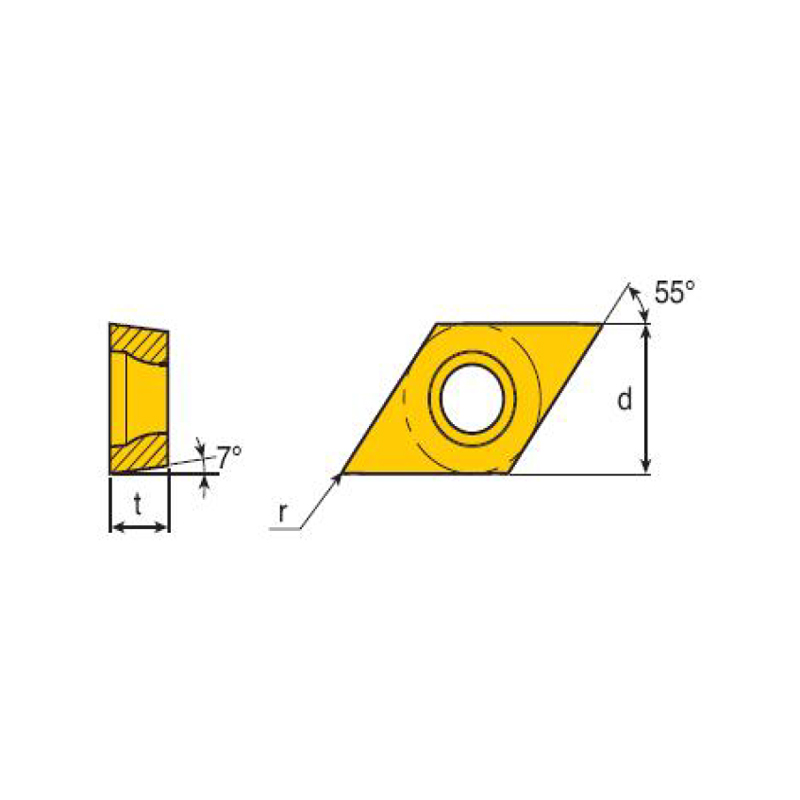

cutting edge length

dimension

d

t

r

07

6. 35

2. 38

0. 03-0. 8

11

9. 52

3. 97

0. 03-0. 8


insert

model

feed

(mm/rev)

cut depth (mm)

P

M/S

K

N

CT5215

CT5225

CT5415

CT5425

CT8215

CT8225

CT7415

CT7425

CT101

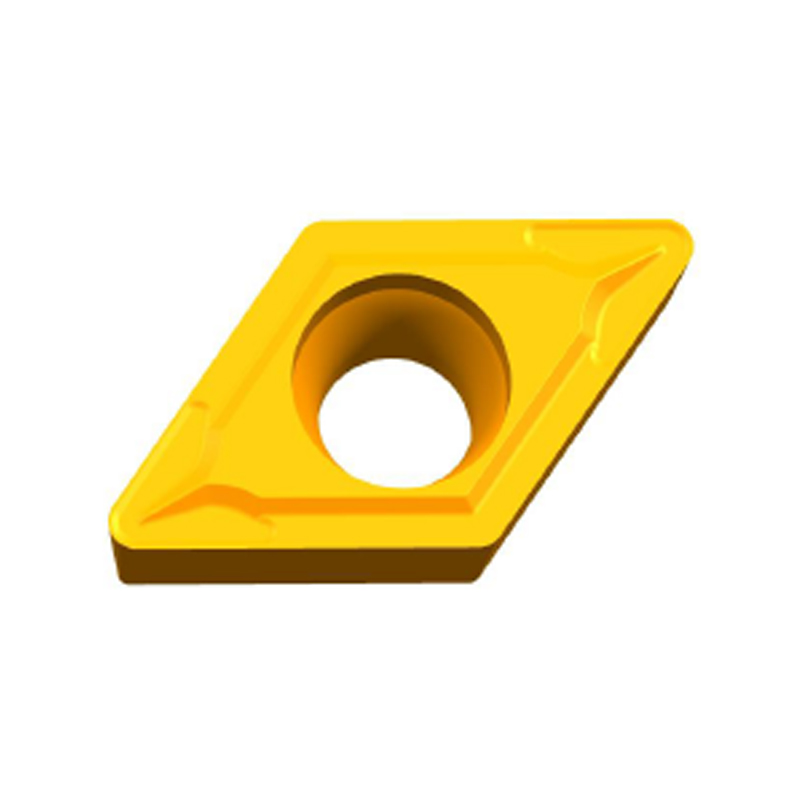

fine finishing

DCMT

11T304 PS

0.05-0.15

0. 5-2. 5



0

0







11T308 PS

0.07-0.15

0. 5-2. 5



0

0

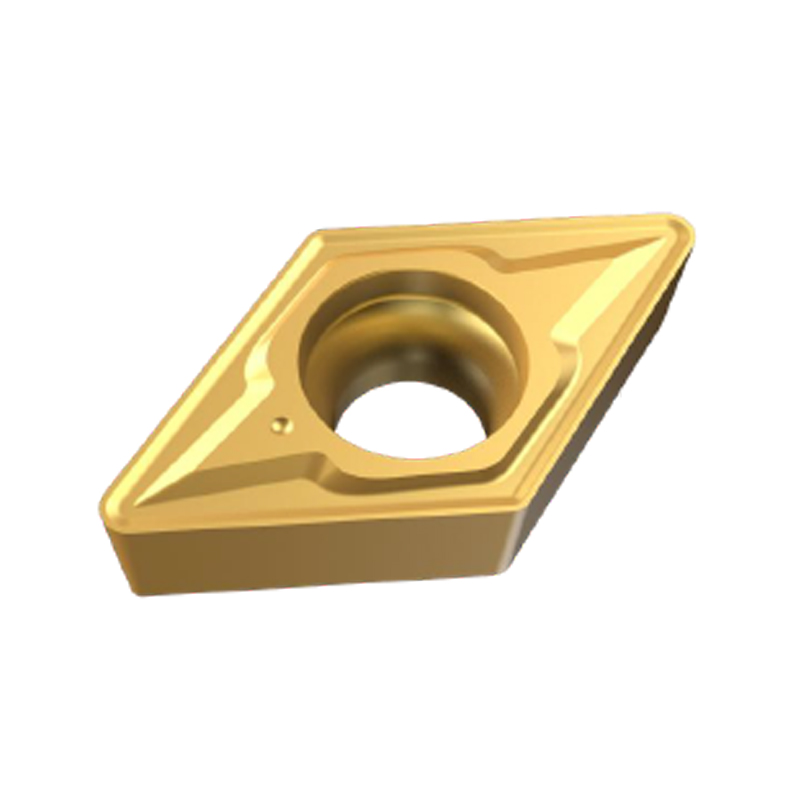

medium finishing

DCMT

070204 PA

0.06-0.18

0. 3-2.0



0

0







070208 PA

0. 08-0. 25

0.4-2. 0



0

0







11T304 PA

0. 08-0. 25

0. 35-3.0



0

0







11T308 PA

0. 10-0. 28

0. 5-3. 0



0

0







11T312 PA

0. 12-0. 32

0. 5-3. 0



0

0

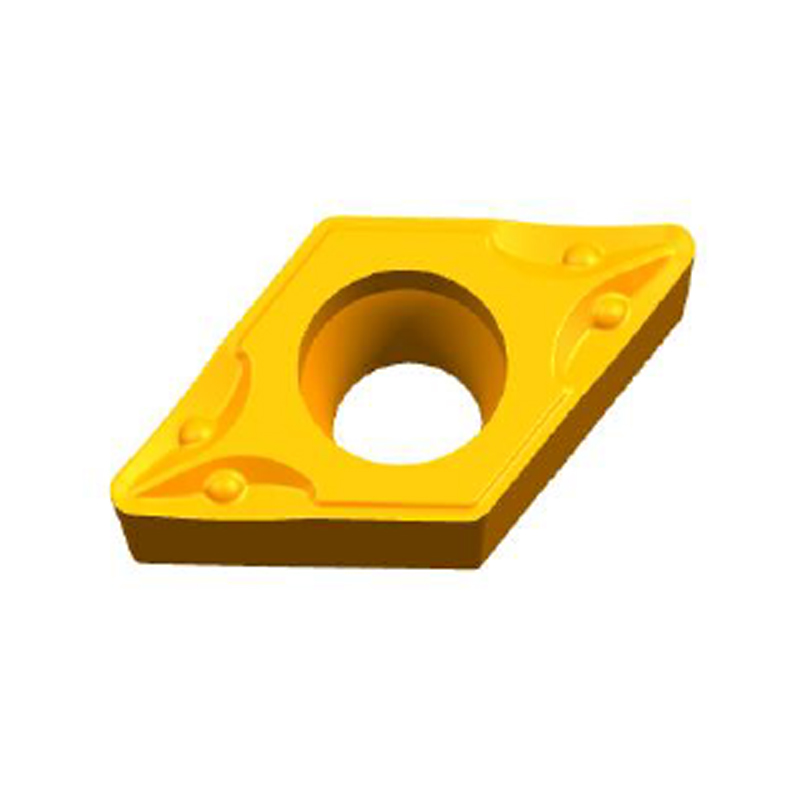

medium finishing

DCMT

070204 GM

0. 06-0. 18

0. 3-2. 0









070208 GM

0. 08-0. 25

0.4-2. 0









11T304 GM

0.08-0.25

0. 35-3.0









11T308 GM

0. 10-0. 28

0. 5-3. 0


































medium finishing

DCMT

11T308

0. 10-0. 28

0. 5-3. 0



0

0

0

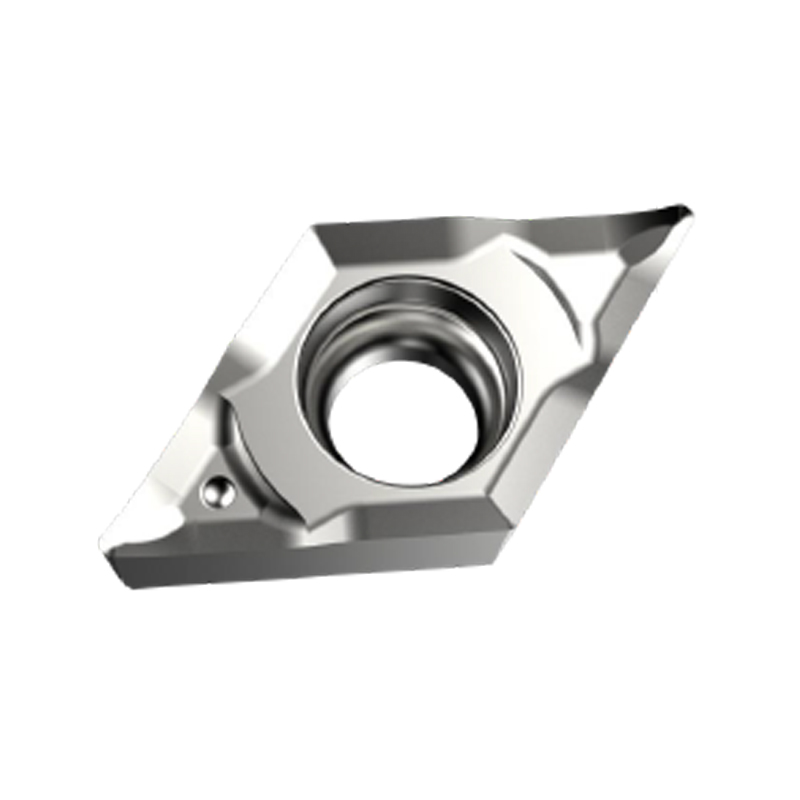

fine finishing

DCGX

11T304 AL

0. 10-0. 28

0. 5-3. 0
