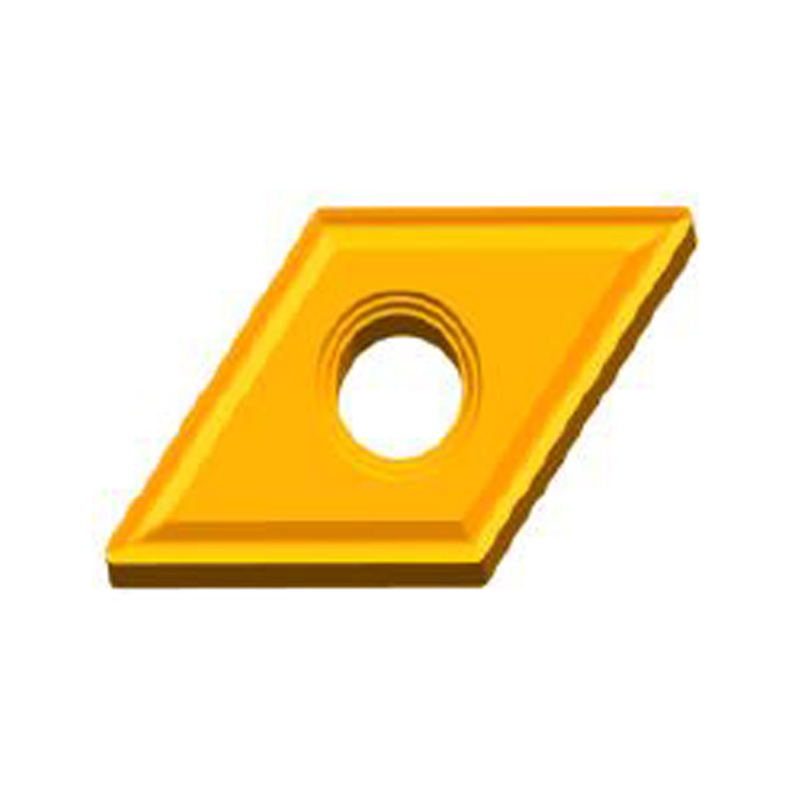

Negative 55°Rhombus insert

DNMG Inserts Series

Negative 55°Rhombus insert
  • FEATURE
  • INQUIRY

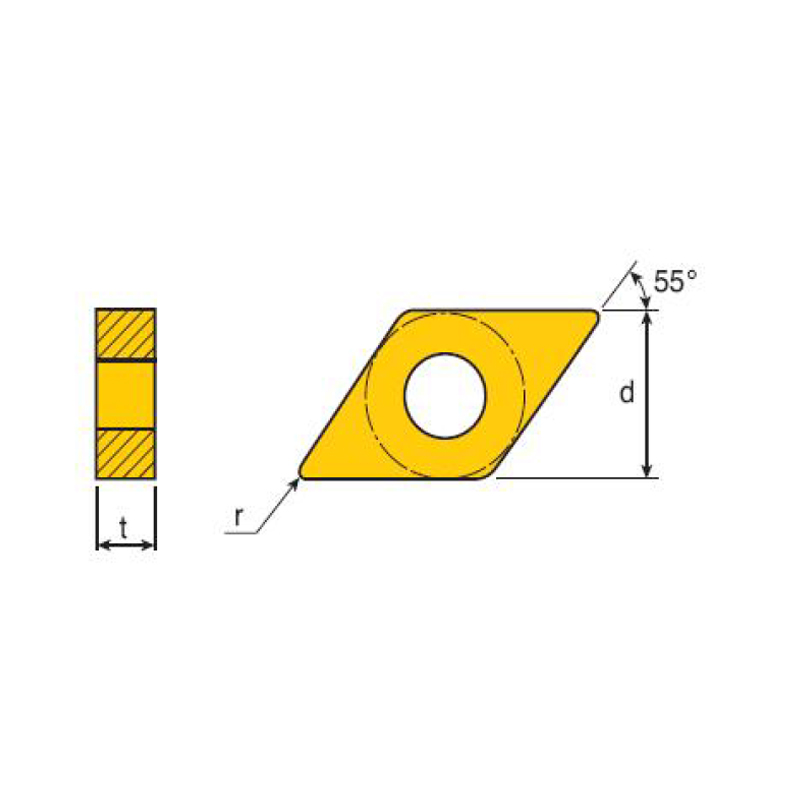

cutting edge length

dimension

d

t

r

11

9. 52

4. 76

0.8-1.2

13

11. 11

5. 56

0.4-1.2

15

12.7

4. 76-6. 35

0.1-1.2


insert model
feed
(mm/rev)
cut depth (mm) P M/S K N
CT5215 CT5225 CT5415 CT5425 CT8215 CT8225 CT7415 CT7425 CT101

fine finishing

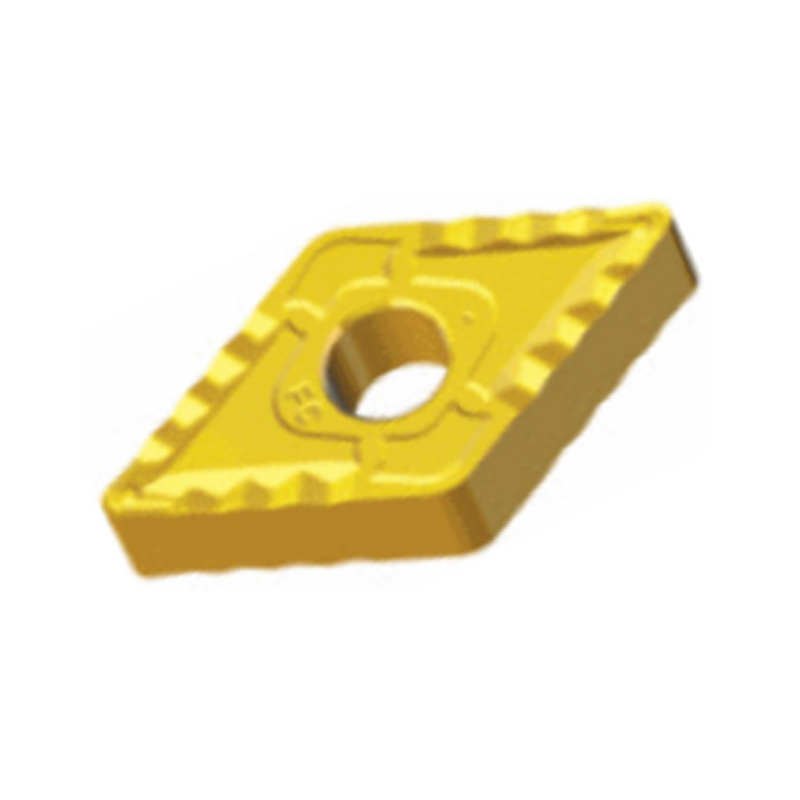

DNMG 150404 SF 0.10-0.40 0. 5-4.0
150408 SF 0.10-0.40 0. 5-4.0



fine finishing

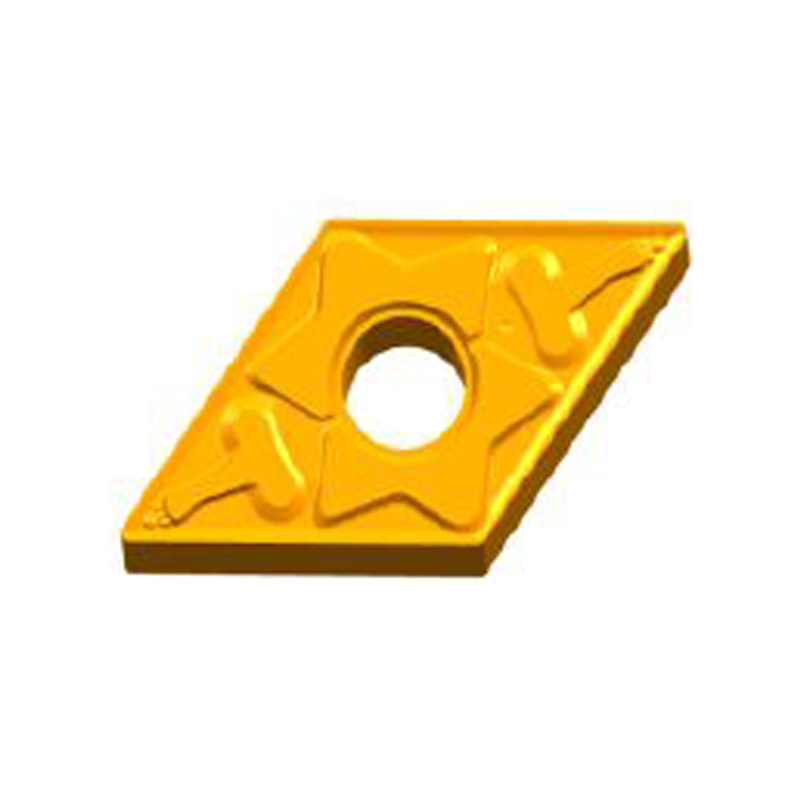

DNMG 150404 PF 0.10-0.40 0. 5-4.0 O
150408 PF 0. 10-0.40 0. 5-4. 0 O
150412 PF 0. 10-0.40 0. 5-4. 0 o


fine finishing
DNMG 150404 MS 0. 10-0.40 0. 5-4. 0
150408 MS 0. 10-0.40 0. 5-4. 0



medium finishing

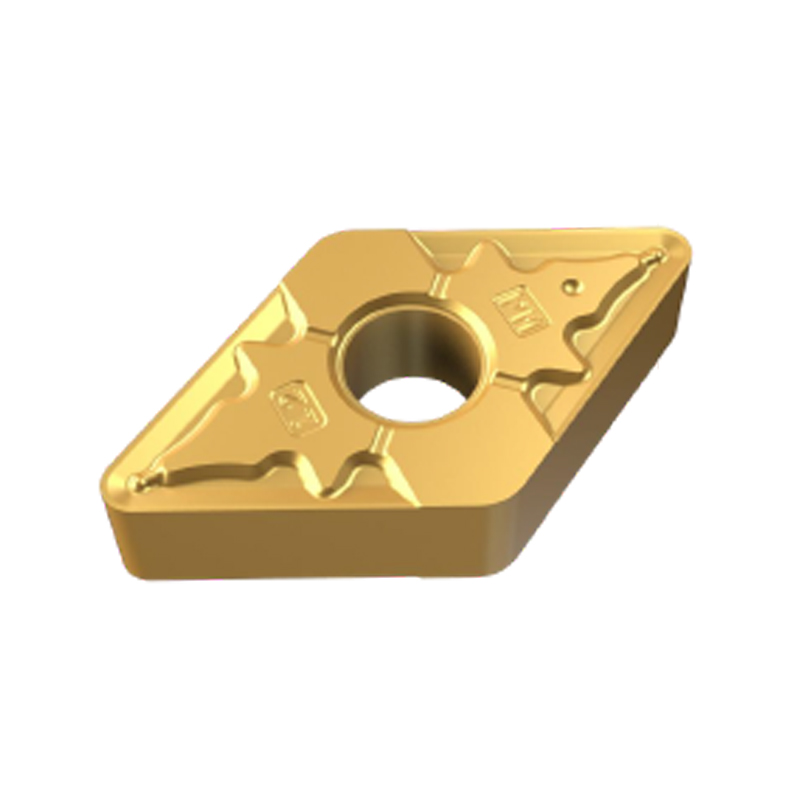

DNMG 150404 TM 0. 17-0. 50 1.0-4.0
150408 TM 0. 17-0. 50 1.0-4.0



medium finishing

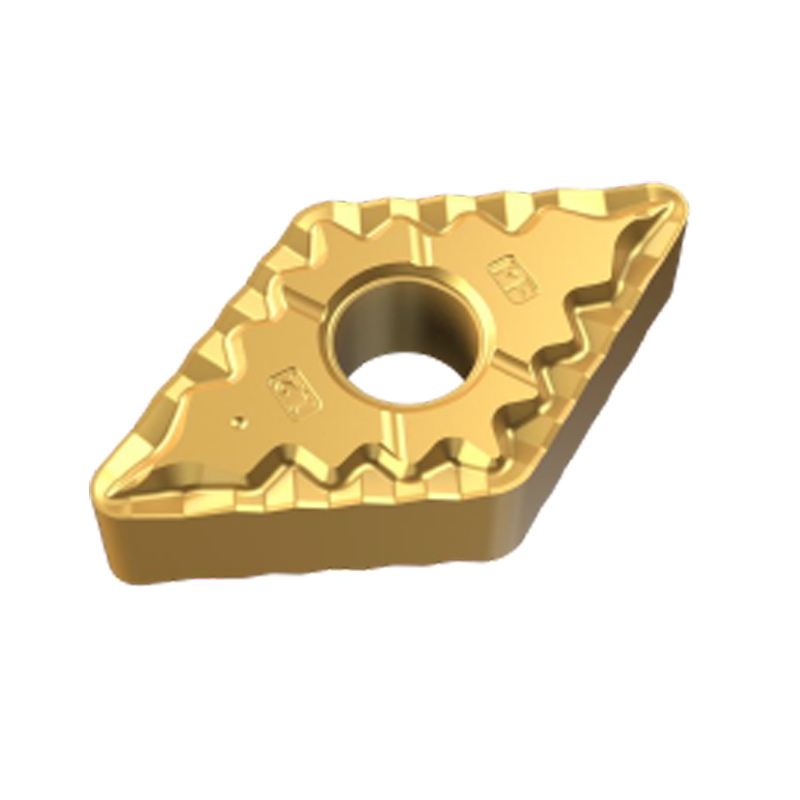

DNMG 150412 PM 0. 17-0. 50 1.0-4.0




Rough finishing

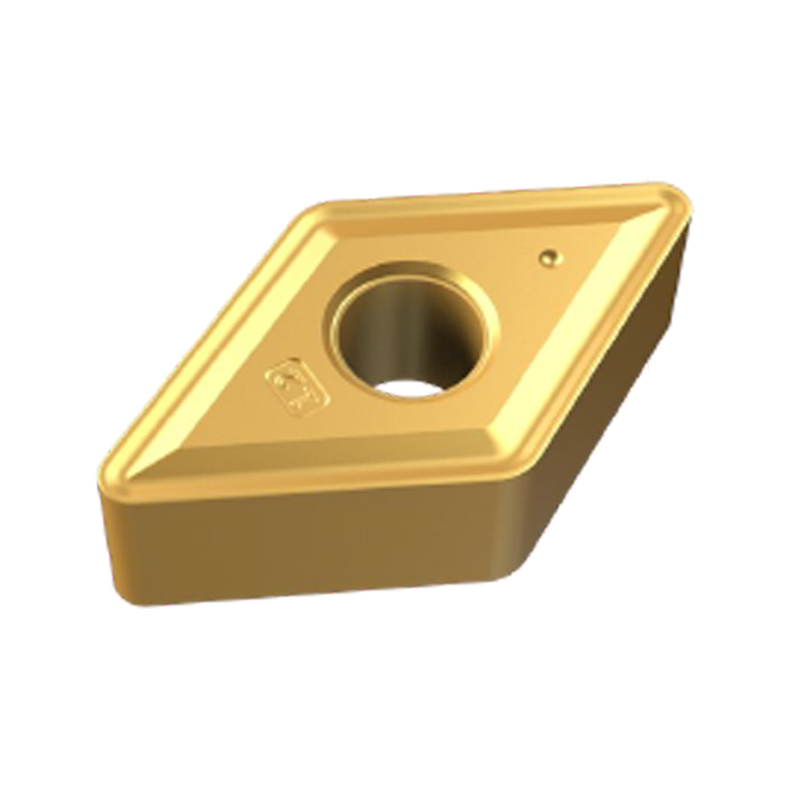

DNMG 150408 0. 17-0. 55 1. 5-4. 0             O
150412 0. 25-0. 55 1. 5-4. 0             O
150612 0. 25-0. 55 1.0-4.0             O
