negative square insert

SNMG Inserts Series

negative square insert
  • FEATURE
  • INQUIRY

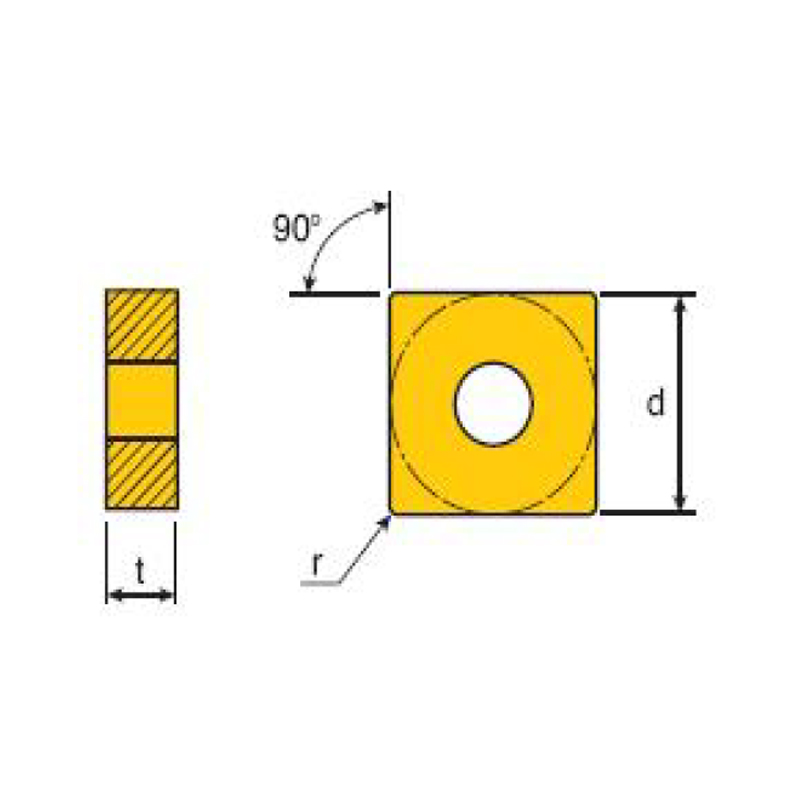

cutting edge length

dimension

d

t

r

12

12. 7

4. 76

0. 4-1.6

19

19. 05

6. 35

1.2-1. 6

25

25.4

7. 94-9. 52

1.6-2. 4

31

31.75

9. 52

2.4


insert

model

feed

(mm/rev)

cut depth (mm)

P

M/S

K

N

CT5215

CT5225

CT5415

CT5425

CT8215

CT8225

CT7415

CT7425

CT101


medium finishing

SNMG

120404 TM

0.12-0.40

1.0-5.0















120408 TM

0.17-0. 55

1.2-5.0


























































































medium finishing

SNMG

120404 MA

0.10-0. 30

1.2-5.0















120408 MA

0. 17-0. 55

1.2-5.0















120412 MA

0. 20-0. 55

1. 5-5.0

































































Rough finishing

SNMG

120404

0. 17-0.45

1.0-5.0













o



120408

0. 23-0. 60

1. 5-5. 0













o



120412

0. 25-0. 60

2.0-5. 0













o



150608

0. 25-0. 60

1. 5-6. 0













o



150612

0. 25-0. 60

2.0-6. 0













o



150616

0. 35-0. 70

2.0-6. 0













o



190612

0. 30-0. 60

3.0-8. 0













o



190616

0. 35-0. 70

3.0-8. 0













o
