TDEF Inserts Series

GROOVING INSERTS

Contact now

FEATURE
INQUIRY

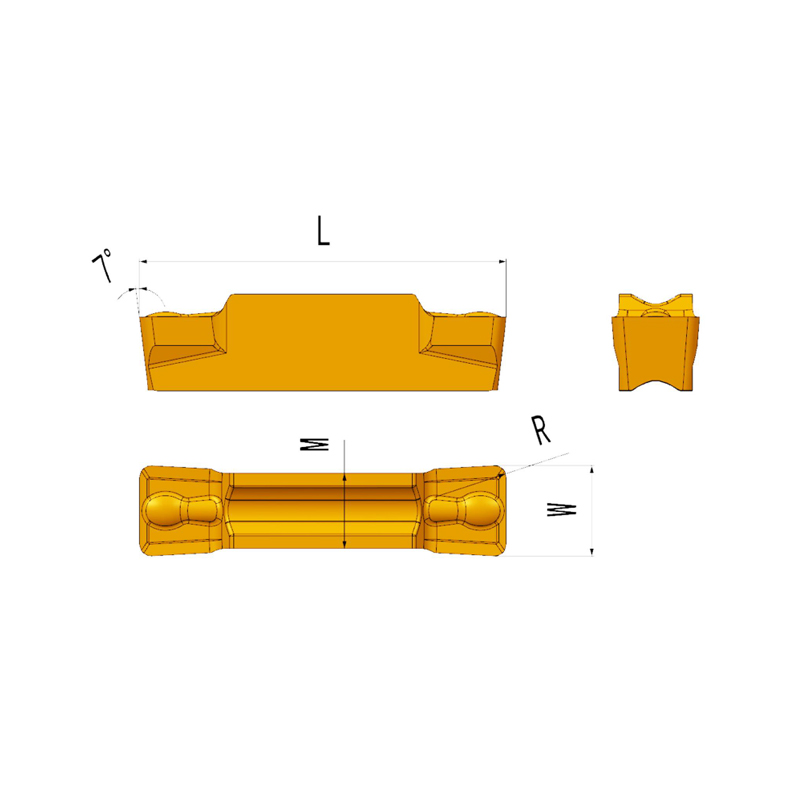

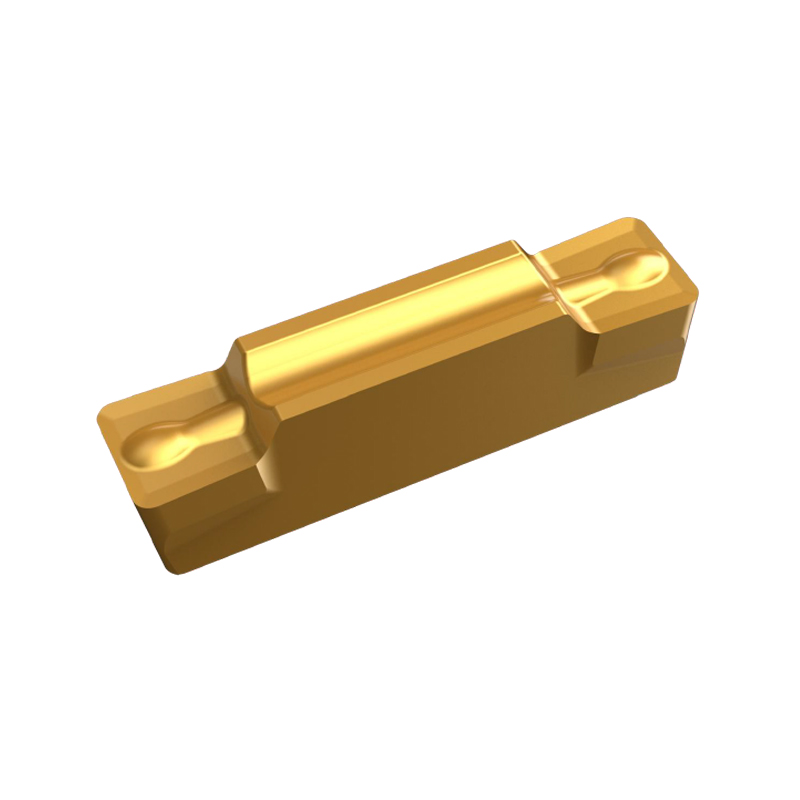

FLAT INSERT：FOR EXTERNAL,INNER HOLE,FACETURNING MILL、GROOVING& PARTING

INSERT MODEL	DIMENSION				TURNING MILL		GROOVING	GRADE
INSERT MODEL	W土 0. 05	M	1	r	FEED (mm/rev)	CUT DEF. (mm)	FEED (mm/rev)	CT5320	CT101
TDEF 3. OOE-0.40	3.0	2.2	20.0	0.4	0. 15-0. 22	0. 5-2.0	0. 07-0. 15	•	•
TDEF 4. OOE-0.40	4.0	3.0	20.0	0.4	0.18-0. 30	0. 5-2.4	0. 09-0. 18
TDEF 4. OOE-0.80	4.0	3.0	20.0	0.8	0. 18-0. 30	1.0-2.4	0. 09-0. 18
TDEF 5. OOE-0.40	5.0	4.0	25.0	0.4	0. 20-0. 35	0. 5-2. 3	0.11-0. 20
TDEF 5. OOE-0.80	5.0	4.0	25.0	0.8	0. 23-0. 35	1. 0-3.0	0.11-0. 20
TDEF 6. OOE-0.80	6.0	5.0	25.0	0.8	0. 24-0. 42	1.0-3.6	0.13-0. 30
TDEF 6. 00E-1.20	6.0	5.0	25.0	1.2	0. 24-0. 42	1.3-3.6	0.13-0. 30
TDEF 8. OOE-0.80	8.0	6.0	30.0	0.8	0. 30-0. 56	1. 0-4.8	0.15-0. 40
TDEF 8. 00E-1.20	8.0	6.0	30.0	1.2	0. 30-0. 56	1. 3-4. 8	0.15-0. 40

◎Grooved inserts with insert width of 8MM have no standard shank, but can be customized

·Grooving Knife Selection Considerations

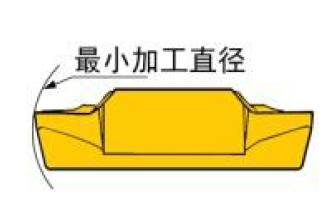

·FACE GROOVING INSERT MIN DIA(mm)

FACE MACHINING	INSERT (FLAT	WIDTH	MIN DIA	INS. (FLA.	WIDTH	MIN DIA	INS.F LAT	WIDTH	MIN. DIA	INS. (ROUN	INS. WIDTH	MIN. DIA
	TDGU TDGX	3	18	TDGC	3	54	TDEF	3	44	TDGU -R	3	41
		4	18		4	34		4	42		4	36
		5	20					5	50		5	54
		6	18					6	48		6	48

·INNER HOLE GROOVING INSERT MIN DIA

INNER HOLE	INS. FLAT	WIDTH	MIN DIA	INS. (FLA.	WIDTH	MIN DIA	INS.F LAT	WIDTH	MIN. DIA	INS. (ROUN	WIDTH	MIN. DIA
	TDGU TDGX	2	24	TDGC	2	40	TDEF			TDGU -R	2	41
		2.5	24
		3	24		3	50		3	40		3	38
		4	21		4	50		4	40		4	38
		5	30		5	60		5	50		5	43
		6	31		6	60		6	50		6	46
								8	62		8	56
