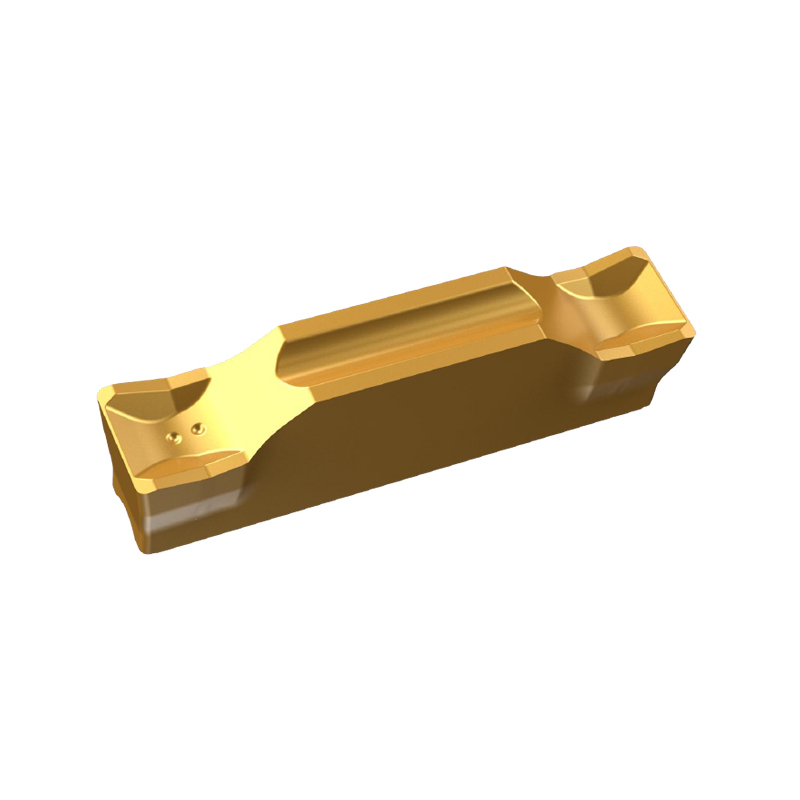

TDGC/TDGU-R Inserts Series

GROOVING INSERTS

Contact now

FEATURE
INQUIRY

FLAT INSERTS：FOR GROOVING、PARTING &TURNING MILL PROCESS

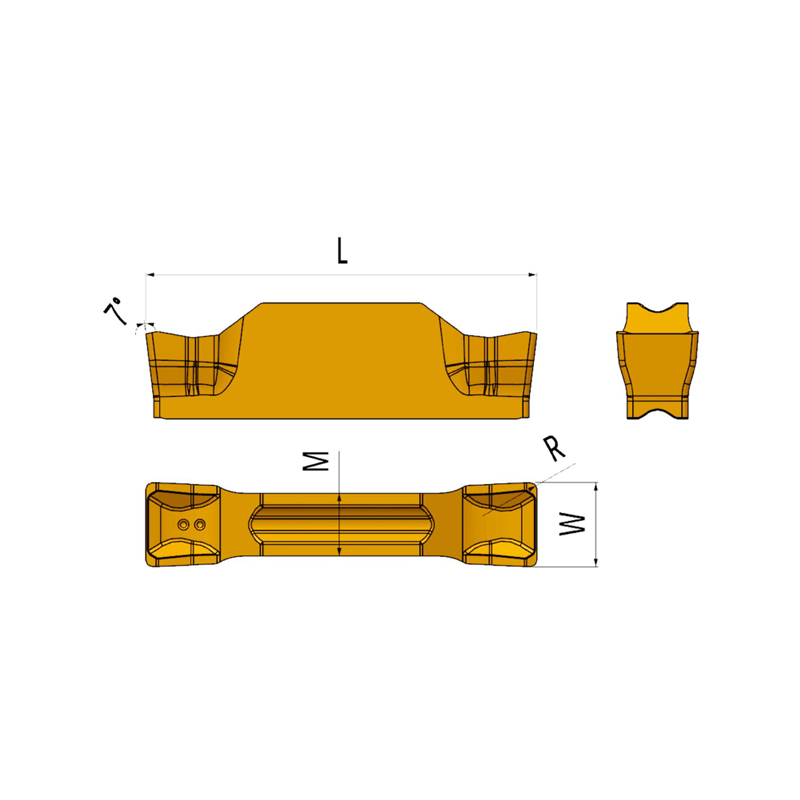

INSERT MODEL	DIMENSION				TURNING MILL		GROOVING	GRADE
INSERT MODEL	W ±0.05	M	L	R	FEED (mm/rev)	CUT DEF. (mm)	FEED (mm/rev)	CT5320	CT7320
TDGC 2E-02	2.0	1.7	20.0	0.2	0. 17-0. 20	0. 5-1.8	0. 05-0. 18	•	•
TDGC 3E-02	3.0	2.4	20.0	0.2	0. 20-0. 27	0. 5-2.4	0. 07-0. 25
TDGC 4E-03	4.0	3.0	20.0	0.3	0. 22-0. 27	1.0-2.4	0. 08-0. 30
TDGC 5E-03	5.0	4.0	25.0	0.3	0. 20-0. 27	0. 5-2.4	0.09-0. 35
TDGC 6E-03	6.0	5.0	25.0	0.3	0. 22-0. 27	1.0-2.4	0.12-0. 40

ROUND INSERTS：FOR EXTERNAL,INNER HOLETURNING MILL、GROOVING AND PROFILING

INSERT MODEL	DIMENSION					TURNING MILL		GROOVING	GRADE
INSERT MODEL	W土 0.05	M	1	h	r	FEED (ram/rev)	CUT DEF. (mm)	FEED (mm/rev)	CT5320
TDGU 200-1. OR	2.0	1.7	20.0	4.7	1.0	0.10-0.25	0. 0-1.0	0. 05-0.15	•
TDGU 300-1. 5R	3.0	2.2	20.0	4.7	1.5	0.15-0.28	0. 0-1. 5	0. 08-0.18
TDGU 400-2. OR	4.0	3.0	20.0	4.7	2.0	0.18-0. 35	0. 0-2. 0	0. 10-0. 20
TDGU 500-2. 5R	5.0	4.0	25.0	5.2	2.5	0. 20-0.42	0. 0-2. 5	0. 12-0. 23
TDGU 600-3. OR	6.0	5.0	25.0	5.2	3.0	0.25-0. 54	0. 0-3. 0	0. 15-0. 27
TDGU 800-4. OR	8.0	6.0	30.0	6.4	4.0	0. 30-0.67	0. 0-4. 0	0. 18-0. 35

◎Grooved inserts with insert width of 8MM have no standard shank, but can be customized
