negative triangle insert

TNMG Inserts Series

negative triangle insert
  • FEATURE
  • INQUIRY

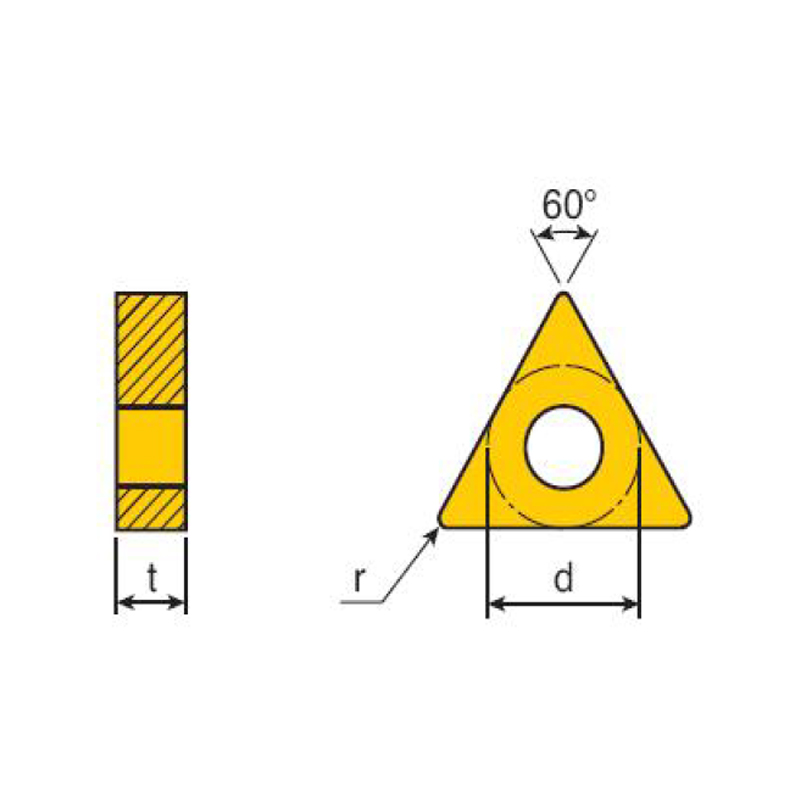

cutting edge length

dimension

d

t

r

11

6. 35

3. 18

0.4

13

7.94

4. 76

0.2-1.2

16

9. 52

4. 76

0.4-1.6

22

12.7

4. 76

0.4-4. 6


insert

model

feed

(mm/rev)

cut depth (mm)

P

M/S

K

N

CT5215

CT5225

CT5415

CT5425

CT8215

CT8225

CT7415

CT7425

CT101







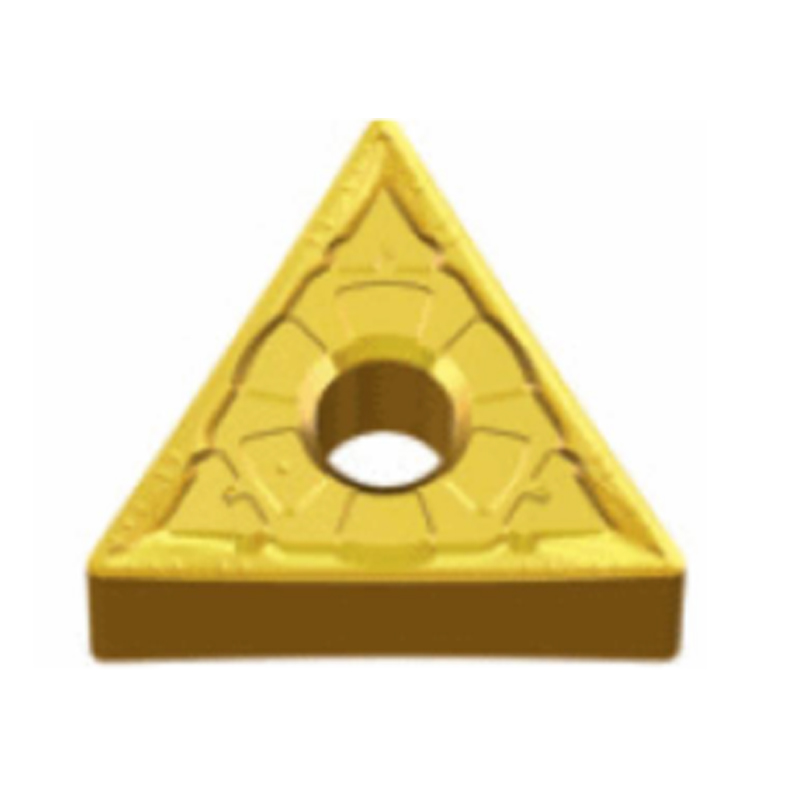

fine finishing

TNMG

160404 SF

0.10-0.40

0. 5-4.0

















160408 SF

0.10-0.40

0. 5-4.0



























































































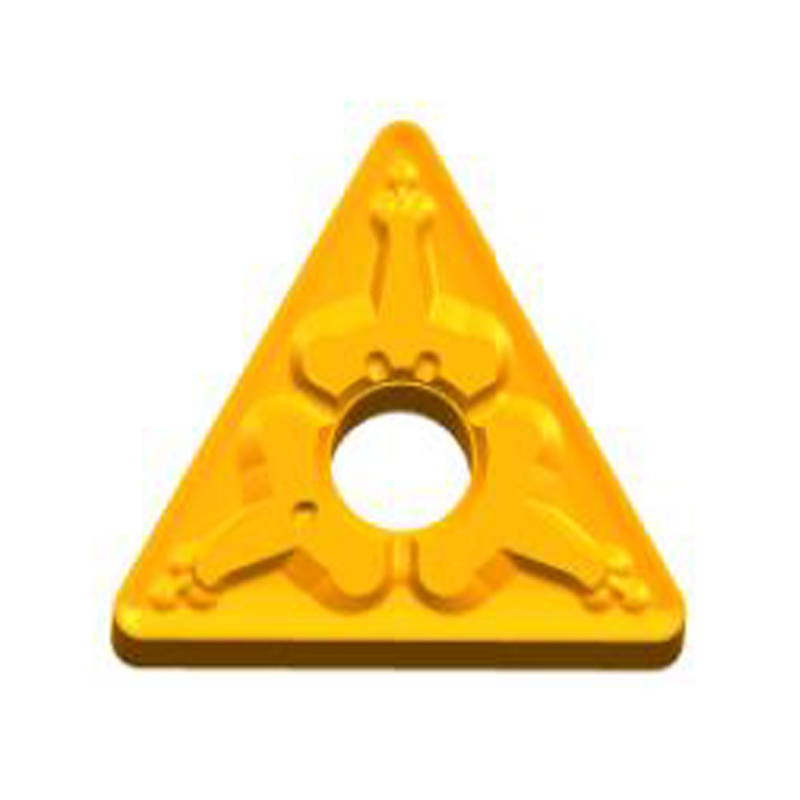

fine finishing

TNMG

160404 PF

0.10-0.40

0. 5-4.0













160408 PF

0. 10-0.40

0. 5-4. 0

























































































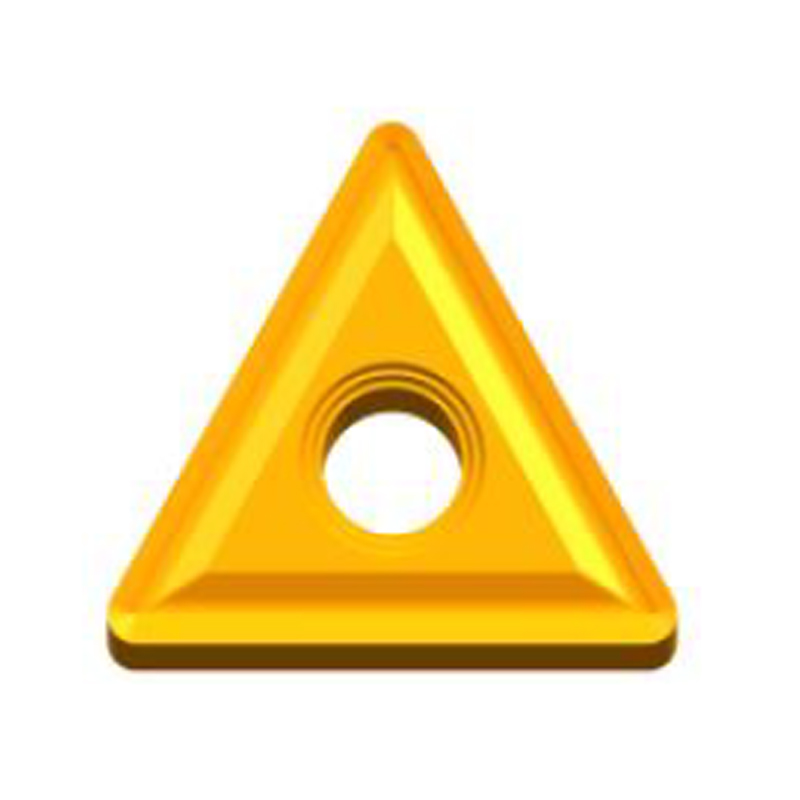

fine finishing

TNMG

160404 MS

0. 10-0.40

0. 5-4. 0















160408 MS

0. 10-0.40

0. 5-4. 0



























































































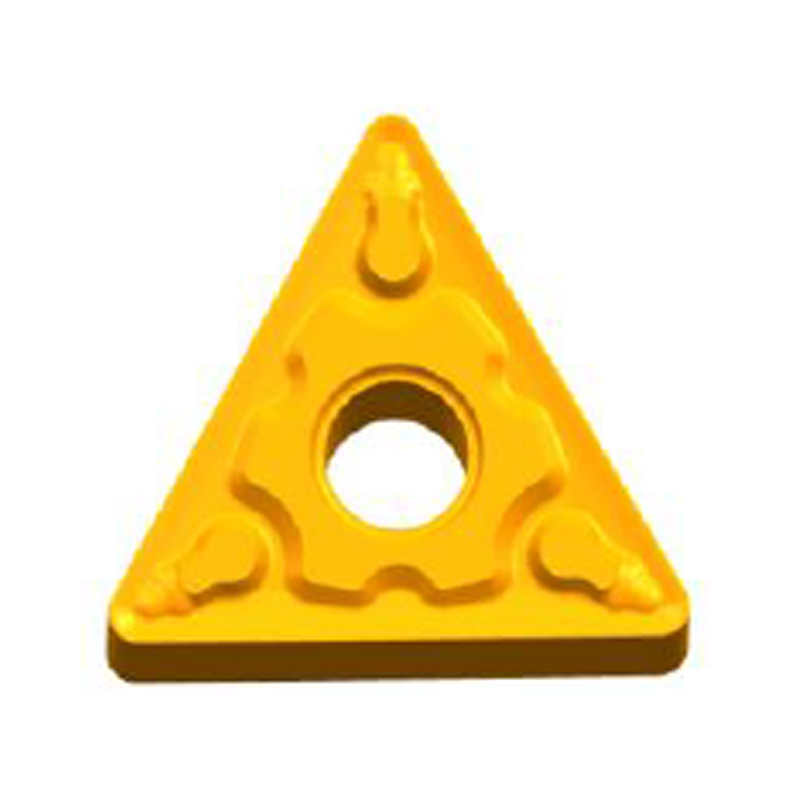

medium finishing

TNMG

160404 PM

0.15-0.40

0. 5-4. 0















160408 PM

0. 15-0.40

0. 5-4. 0















160412 PM

0.15-0.40

0. 5-4. 0

































































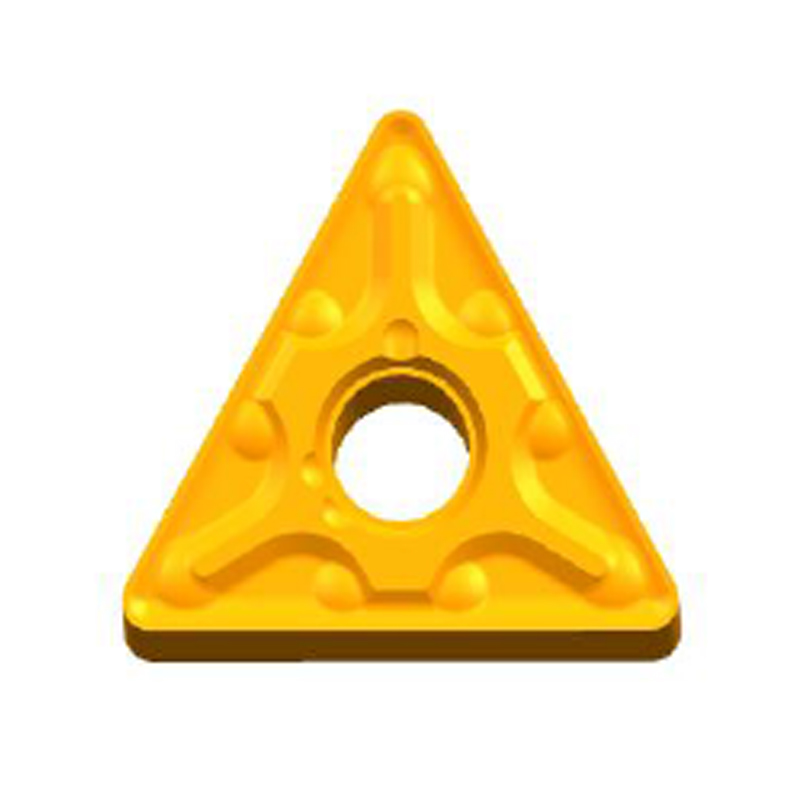

medium finishing

TNMG

160404 TM

0. 17-0.40

1.0-3. 5















160408 TM

0. 17-0. 50

1.2-3. 5















160412 TM

0. 20-0. 50

1. 5-3. 5





























































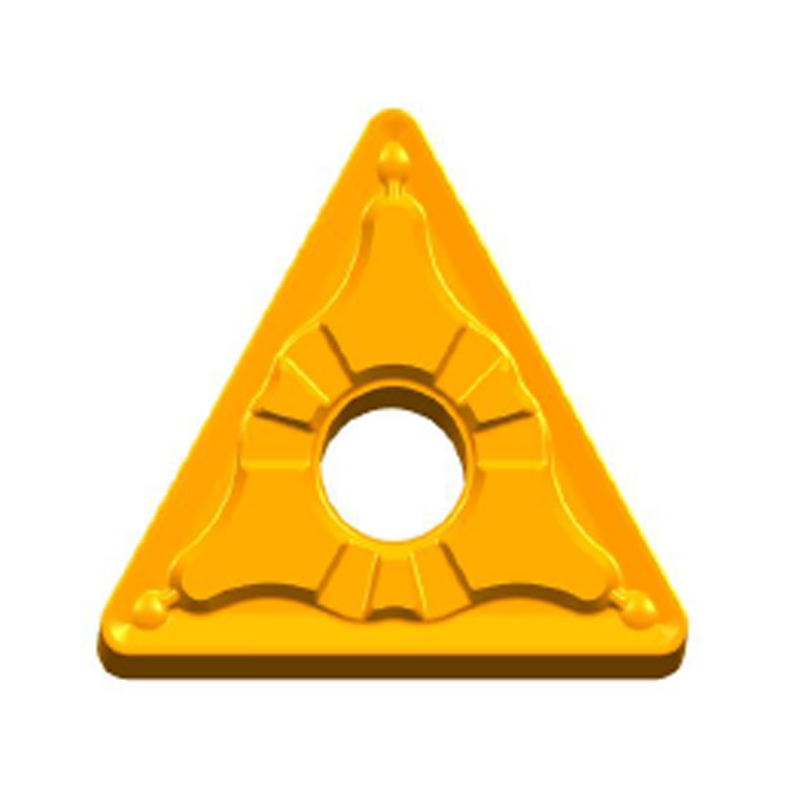

medium finishing

TNMG

160408 PZ

0.17-0.50

1.2-3.5

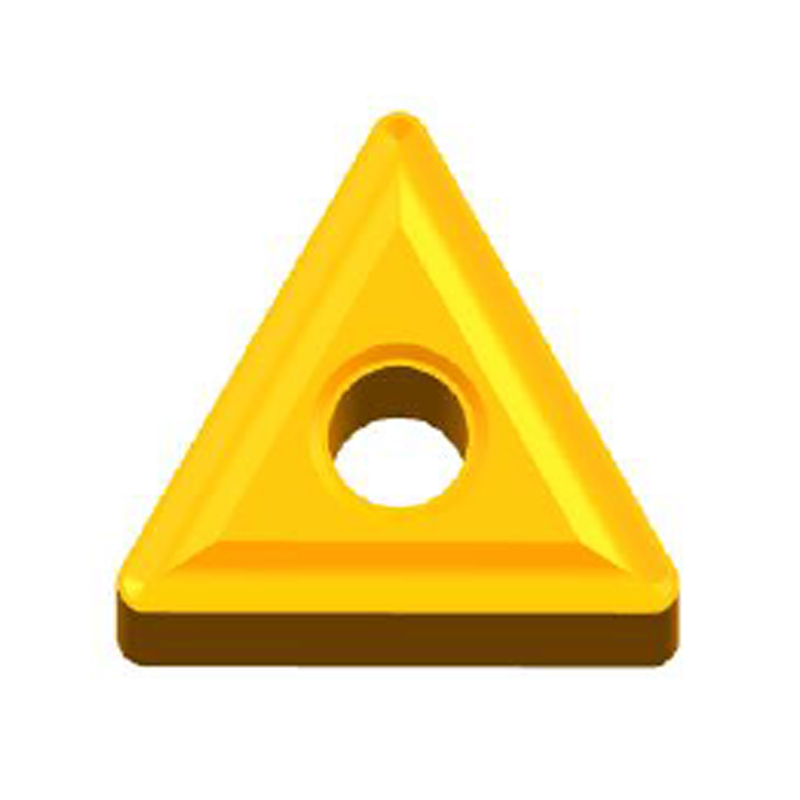

medium finishing

TNMG

160404 MA

0.13-0.50

0.8-4.5

160408 MA

0.15-0.55

0.8-4.5

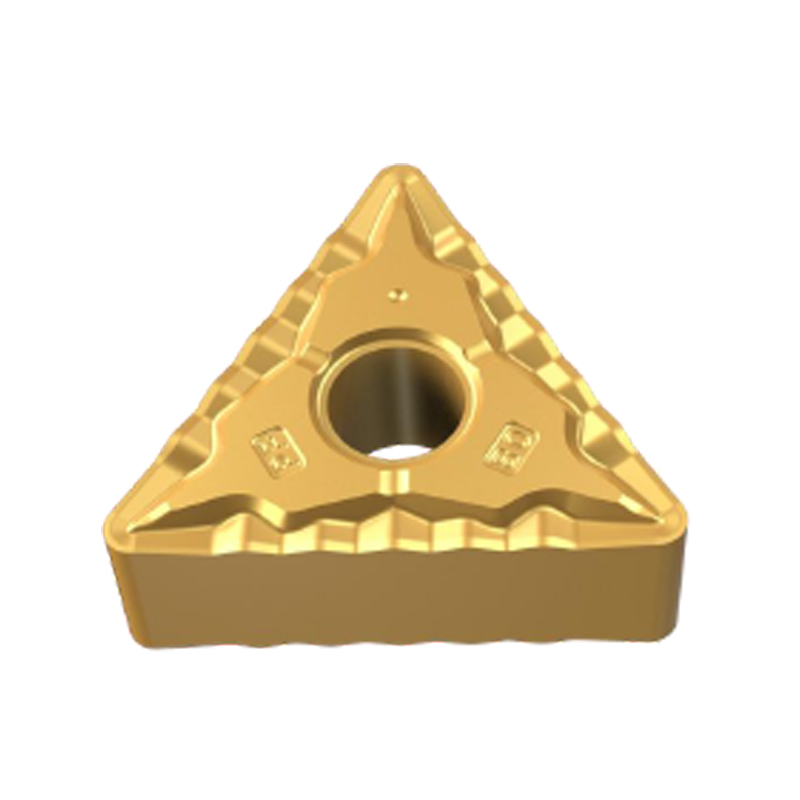

Rough finishing

TNMG

160404

0.17-0.45

1.5-3.5

O

160408

0.17-0.55

2.0-3.5

O

160412

0.25-0.55

2.0-3.5

O

220408

0.17-0.55

2.0-5.0

O

220412

0.25-0.55

2.0-5.0

O
