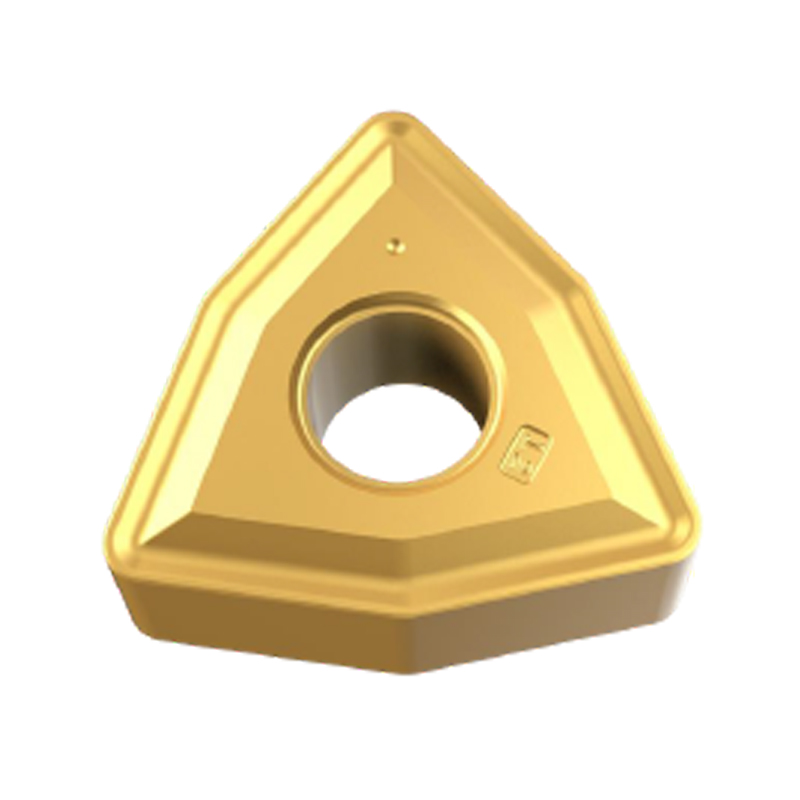

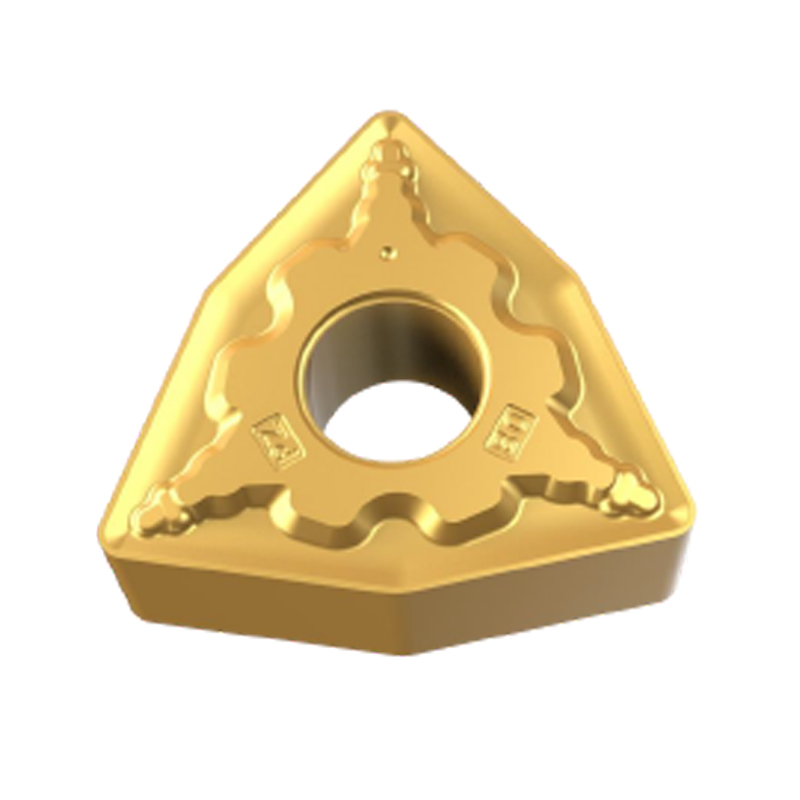

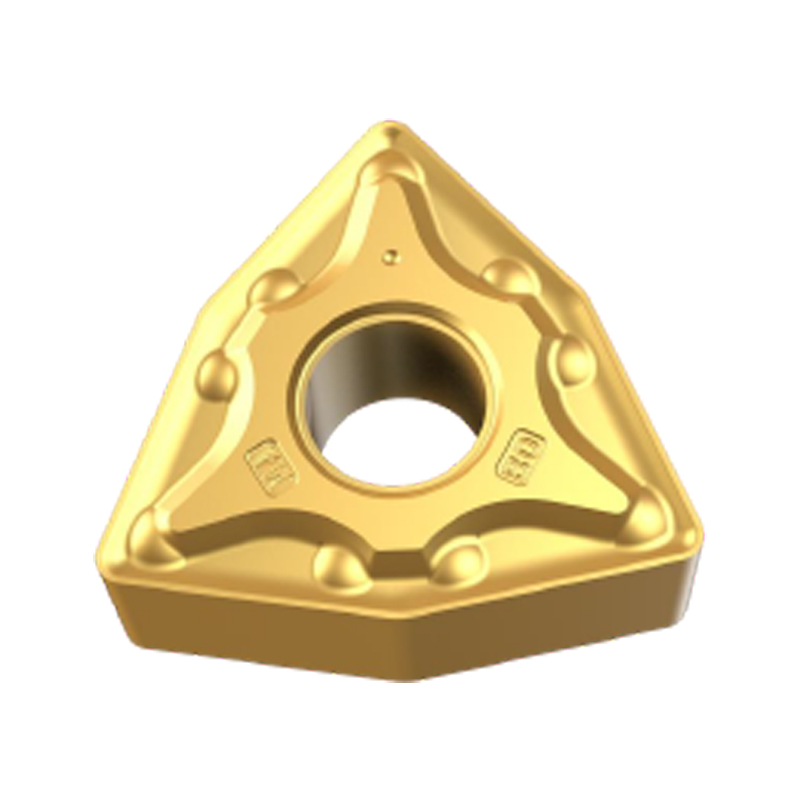

NEGATIVE 80°TRIANGLE insert

WNMA Inserts Series

NEGATIVE 80°TRIANGLE insert
  • FEATURE
  • INQUIRY
Applications and Features


  • Medium machining geometry for steel;
  • Rounding treatment, both cutting effect of cutting edge and cutting edge
  • Mouth strength, good overall performance;
  • Good chip breaking in moderate machining.

cutting edge length

dimension

d

t

r

06

9. 52

4. 76

0.4-1.2

08

12.7

4. 76

0.4-1.6


insert

model

feed

(mm/rev)

cut depth (mm)

P

M/S

K

N

CT5215

CT5225

CT5415

CT5425

CT8215

CT8225

CT7415

CT7425

CT101


medium finishing

WNMG

080408 PZ

0.17-0. 55

1.2-4.0

O













080412 PZ

0.25-0. 55

1. 5-4.0

O























































































medium finishing

WNMG

060408 MA

0.13-0. 50

0. 5-5.0















060412 MA

0. 15-0. 55

0. 5-5.0















080404 MA

0.10-0.45

0.8-4. 0















080408 MA

0.12-0.45

0.8-4. 0















080412 MA

0. 12-0.45

0.8-4. 0















080416 MA

0.12-0.45

0.8-4. 0
















Rough finishing

WNMG

080404

0. 15-0. 70

1.0-5.0













o



080408

0. 15-0. 70

1.0-5.0













o



080412

0. 20-0. 80

1. 5-5. 0













o



080416

0. 20-0. 80

1. 5-5. 0













o
